Face milling cutters F2010.B.125.Z08.04.R759M

Face milling cutters F2010.B.125.Z08.04.R759M

€

1,348.00

EX VAT

€

1,658.04

INC VAT

Walter

Face milling cutters F2010.B.125.Z08.04.R759M

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

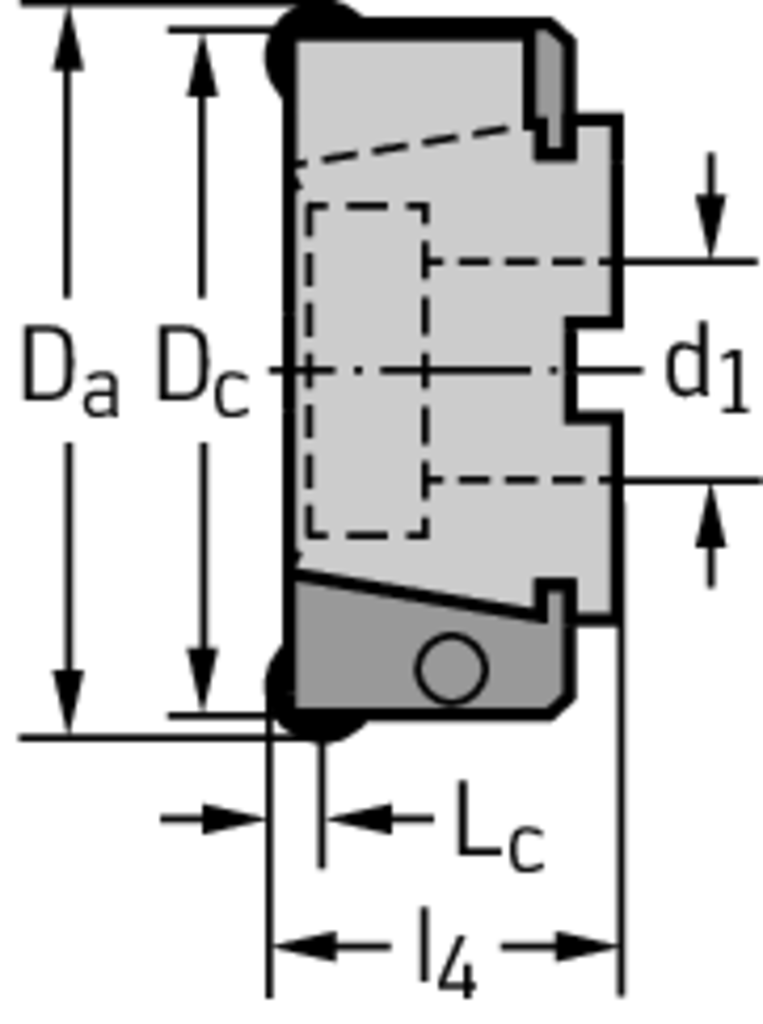

Tool designation (Designation) F2010.B.125.Z08.04.R759M

Cutting edge diameter (D c) 125 mm

Maximum cutting diameter (D a) 135 mm

connection diameter (d 1) 40 mm

functional length (l 4) 63 mm

cutting edge length (L c) 4 mm

Number of teeth (Z) 8

weight of item 3,5 kg

Number of indexable inserts (No. of indexable inserts) 8

Insert Shape F2

DESCRIPTION & FEATURES

Face milling cutters F2010 • Parallel bore DIN 138 transverse keyway • κ=45° • metric • XN .. 0705 .. • Dc=125mm • Z=8

Article number (J21):

F2010.B.125.Z08.04.R759M

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

125 mm

Cutting diameter maximum (A2):

135 mm

Body diameter (A3):

121,5 mm

Hub diameter (A4):

98,8 mm

Cutting depth maximum (B2):

4 mm

Overall length (B5):

63 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

Adjustment property (D4):

Rotational speed maximum (D6):

5400 1/min

Weight of item (D7):

3,5 kg

Tool cutting edge angle (E1):

45 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

0,9 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
