Face milling cutters F2010.B.250.Z12.06.R758MFace milling cutters F2010.B.250.Z12.06.R758M
Face milling cutters F2010.B.250.Z12.06.R758M Face milling cutters F2010.B.250.Z12.06.R758M

Face milling cutters F2010.B.250.Z12.06.R758M

€
2,230.00
EX VAT
€
2,742.90
INC VAT
Walter
Face milling cutters F2010.B.250.Z12.06.R758M
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

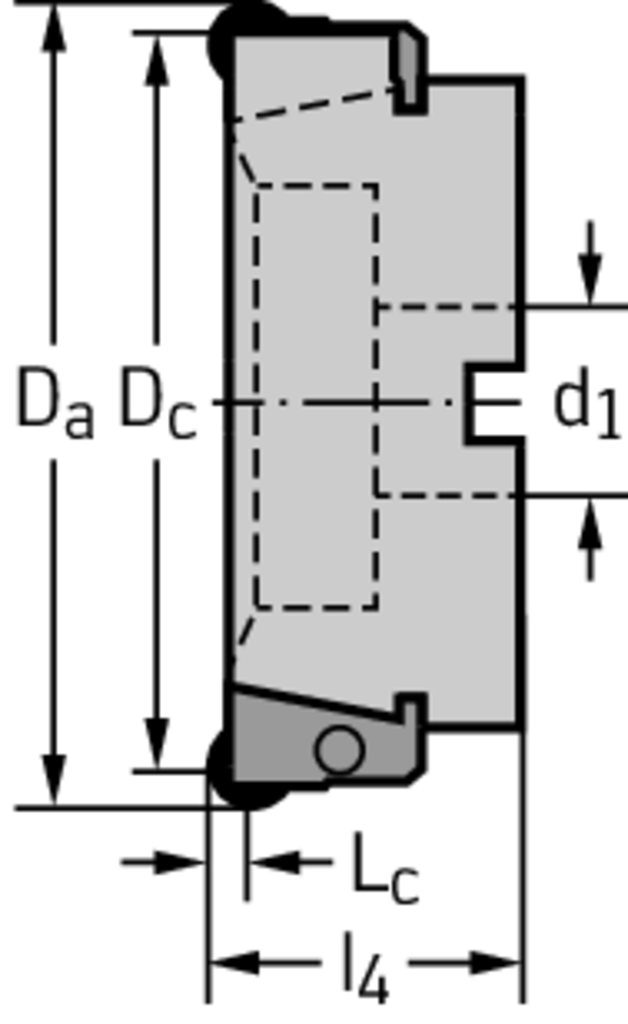

Tool designation (Designation) F2010.B.250.Z12.06.R758M
Cutting edge diameter (D c) 250 mm
Maximum cutting diameter (D a) 264 mm
connection diameter (d 1) 60/50 B mm
functional length (l 4) 63 mm
cutting edge length (L c) 6 mm
Number of teeth (Z) 12
weight of item 14,7 kg
Number of indexable inserts (No. of indexable inserts) 12
Insert Shape F2
DESCRIPTION & FEATURES
Face milling cutters F2010 • Parallel bore DIN 138 transverse keyway • κ=45° • metric • SD .. 1204 .. • Dc=250mm • Z=12
Article number (J21):
F2010.B.250.Z12.06.R758M
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
1
Cutting diameter (A1):
250 mm
Cutting diameter maximum (A2):
264 mm
Body diameter (A3):
245,2 mm
Hub diameter (A4):
223,8 mm
Cutting depth maximum (B2):
6 mm
Overall length (B5):
63 mm
Connection code type machine side (C11):
SPK
Connection code form at machine side (C12):
02
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
3
Connection size code machine side (C2):
0600
Connection diameter machine side (C3):
60 mm
Adjustment property (D4):
0
Rotational speed maximum (D6):
3800 1/min
Weight of item (D7):
14,7 kg
Tool cutting edge angle (E1):
45 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
0 °
Plunge depth maximum (E5):
1 mm
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
12
Face effective cutting edge count (F22):
12
Face mounted insert count (G13):
12
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Data chip provision (J7):
0
