Face milling cutters M5012-040-T36-04-08Face milling cutters M5012-040-T36-04-08
Face milling cutters M5012-040-T36-04-08 Face milling cutters M5012-040-T36-04-08

Face milling cutters M5012-040-T36-04-08

€
409.00
EX VAT
€
503.07
INC VAT
Walter
Face milling cutters M5012-040-T36-04-08
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

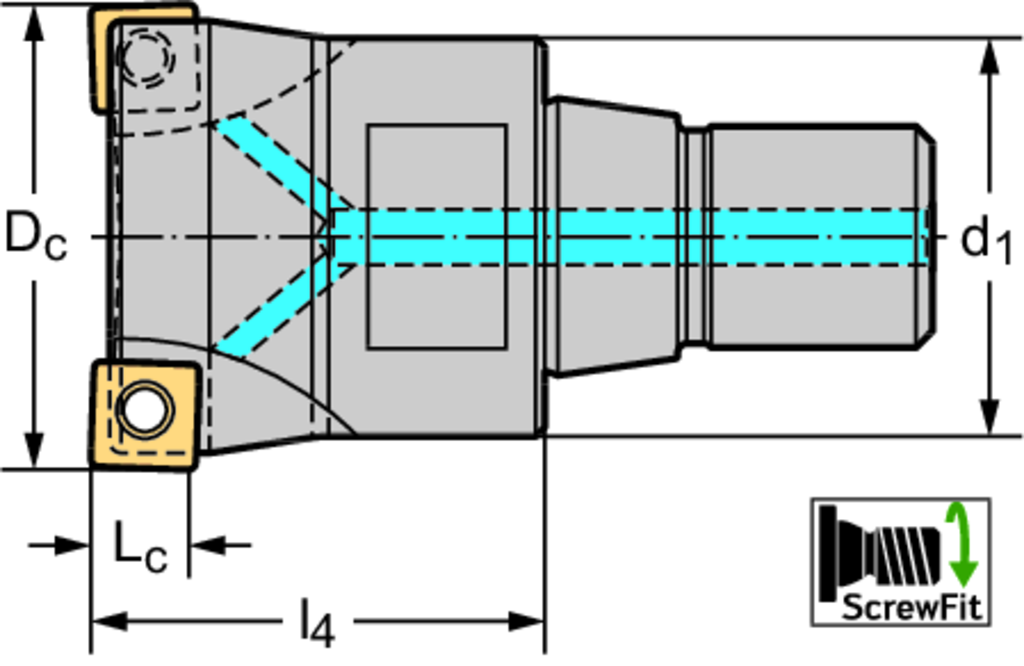

Tool designation (Designation) M5012-040-T36-04-08
Cutting edge diameter (D c) 40 mm
Shank diameter (d 1) T36 mm
Functional length (l 4) 40 mm
Cutting edge length (L c) 8 mm
Number of teeth (Z) 4
weight of item 0,4 kg
Number of indexable inserts (No. of indexable inserts) 4
Insert Shape M5
DESCRIPTION & FEATURES
Face milling cutters M5012 • ScrewFit • κ=88° • metric • SN .. 0904 .. • Dc=40mm • Z=4
Article number (J21):
M5012-040-T36-04-08
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
1
Cutting diameter (A1):
40 mm
Body diameter (A3):
39 mm
Depth of cut maximum (B2):
8 mm
Protruding length (B3):
40 mm
Usable length (B4):
40 mm
Overall length (B5):
75 mm
Connection code type machine side (C11):
SAW
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0360
Connection diameter machine side (C3):
36 mm
Rotational speed maximum (D6):
18100 1/min
Weight of item (D7):
0,358 kg
Adjustment property (D9):
0
Tool cutting edge angle (E1):
88 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
0 °
Plunge depth maximum (E5):
0,7 mm
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
4
Face effective cutting edge count (F22):
4
Face mounted insert count (G13):
4
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
