Face milling cutters M4003-025-A25-02-6.5

Face milling cutters M4003-025-A25-02-6.5

€

309.00

EX VAT

€

380.07

INC VAT

Walter

Face milling cutters M4003-025-A25-02-6.5

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

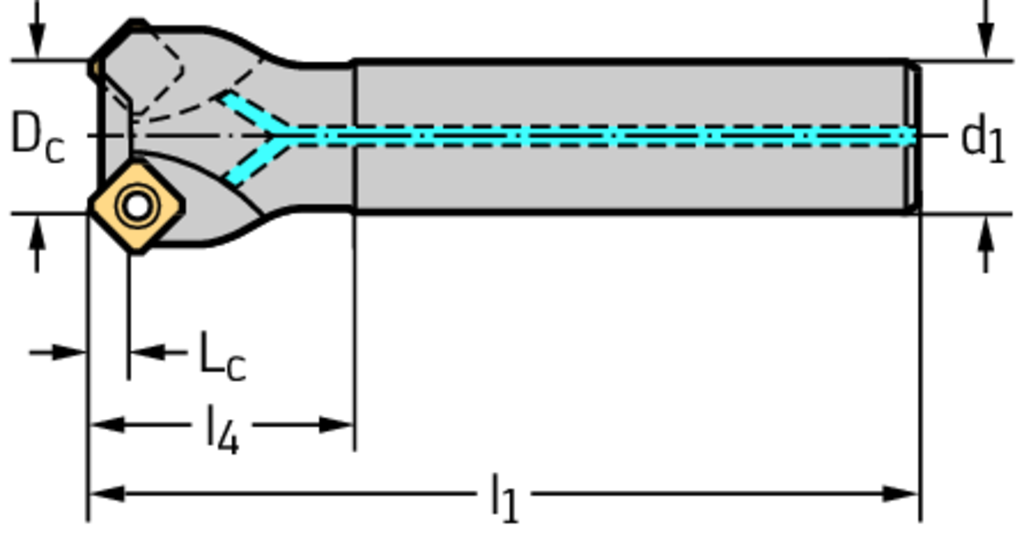

Tool designation (Designation) M4003-025-A25-02-6.5

Cutting edge diameter (D c) 25 mm

Shank diameter (d 1) 25 mm

Functional length (l 4) 35 mm

Overall length (l 1) 110 mm

Cutting edge length (L c) 6,5 mm

Number of teeth (Z) 2

weight of item 0,5 kg

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape M4

DESCRIPTION & FEATURES

Face milling cutters M4003 • Parallel shank • κ=45° • metric • SD .. 1204 .. • Dc=25mm • Z=2

Article number (J21):

M4003-025-A25-02-6.5

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

25 mm

Cutting diameter maximum (A2):

38,11 mm

Body diameter (A3):

37,63 mm

Depth of cut maximum (B2):

6,5 mm

Protruding length (B3):

35 mm

Usable length (B4):

35 mm

Overall length (B5):

110 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0250

Connection diameter machine side (C3):

25 mm

Shank length (C4):

56 mm

Rotational speed maximum (D6):

33300 1/min

Weight of item (D7):

0,501 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

45 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

25,9 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
