Finishing inserts ADGX ADGX1606PER-F56 WHH15

Finishing inserts ADGX ADGX1606PER-F56 WHH15

€

32.10

EX VAT

€

39.48

INC VAT

Walter

Finishing inserts ADGX ADGX1606PER-F56 WHH15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

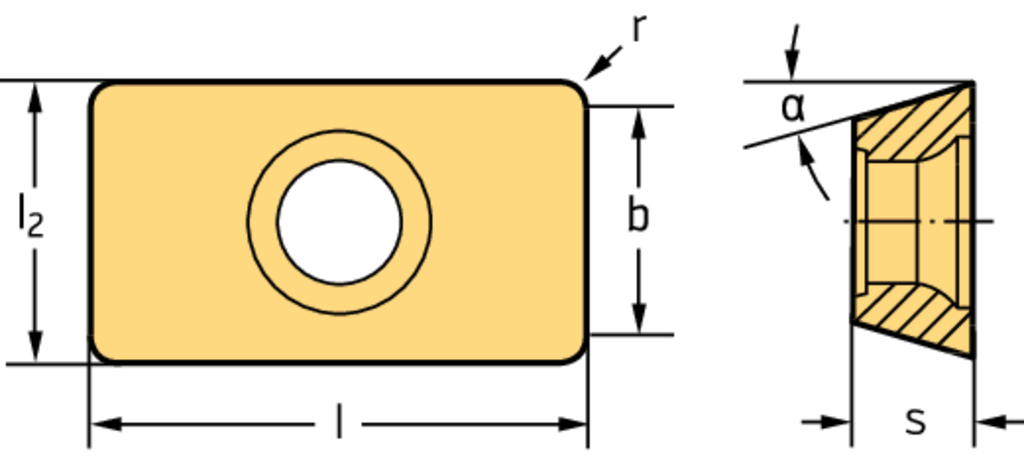

Tool designation (Designation) ADGX1606PER-F56 WHH15

Indexable insert tolerance class (Tolerance class) G

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 10,8 mm

Cutting edge length (l) 17,5 mm

Insert thickness (s) 6,15 mm

Clearance angle major (α) 15 Deg

Minor clearance angle (α 2) 20 Deg

Corner radius (r) 0,8 mm

Wiper cutting edge length (b) 8 mm

Insert Shape AD

DESCRIPTION & FEATURES

Finishing inserts ADGX ...-F56 • clearance angle major=15° • WHH15 • Corner radius=0,8mm • wiper edge length=8mm

Article number (J21):

ADGX1606PER-F56 WHH15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

85 °

Clearance angle major (A2):

15 °

Cutting edge length (B1):

17,5 mm

Insert width (B2):

10,8 mm

Inscribed circle diameter (B3):

10,8 mm

Insert thickness (C1):

6,15 mm

Corner radius (D1):

0,8 mm

Wiper edge length (D6):

8 mm

Weight of item (D75):

0,009 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F56

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

16,4 mm

Insert thickness total (G4):

4,32 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WHH15

Coating (H5):

TiAlN

Tipped cutting edge code (H6):

Standard designation (J11):

ADGX1606PER
