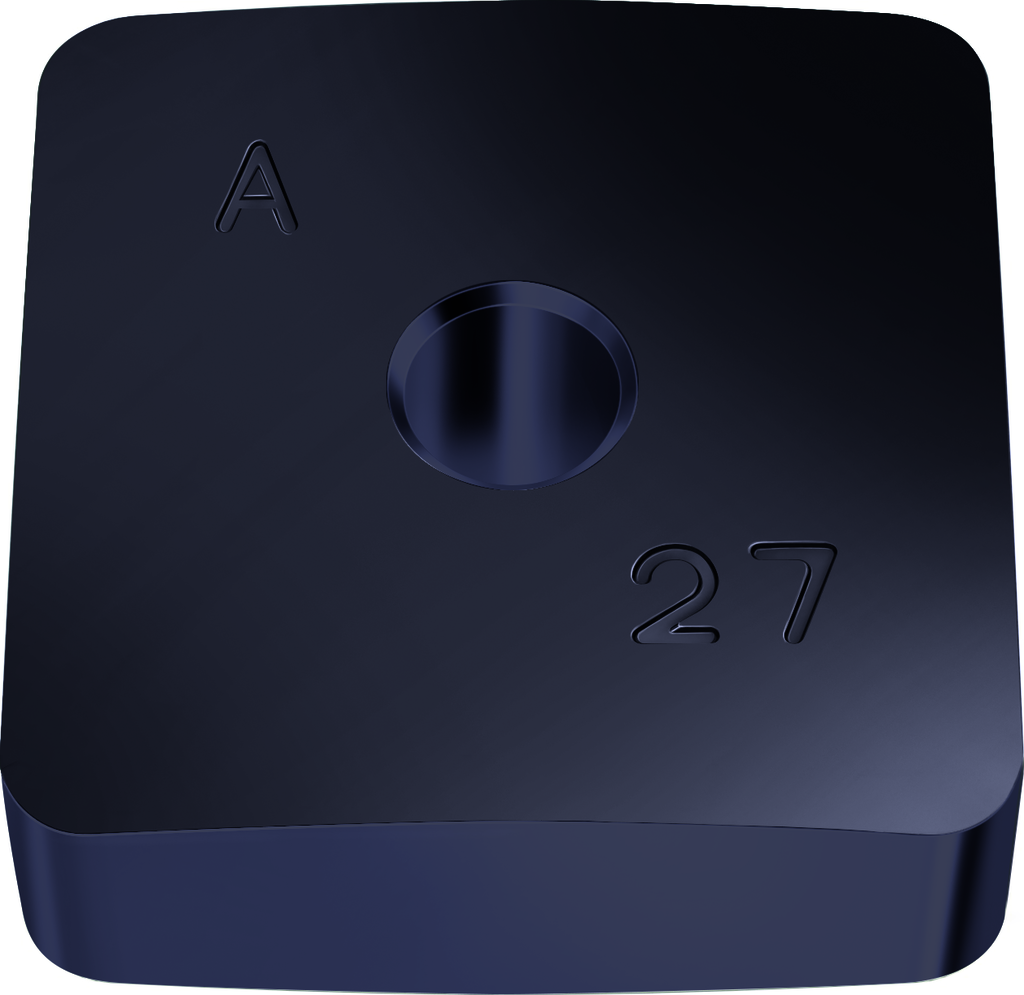

Finishing inserts SNEF1204PNN-A27 WHH15X

Finishing inserts SNEF1204PNN-A27 WHH15X

€

22.19

EX VAT

€

27.29

INC VAT

Walter

Finishing inserts SNEF1204PNN-A27 WHH15X

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

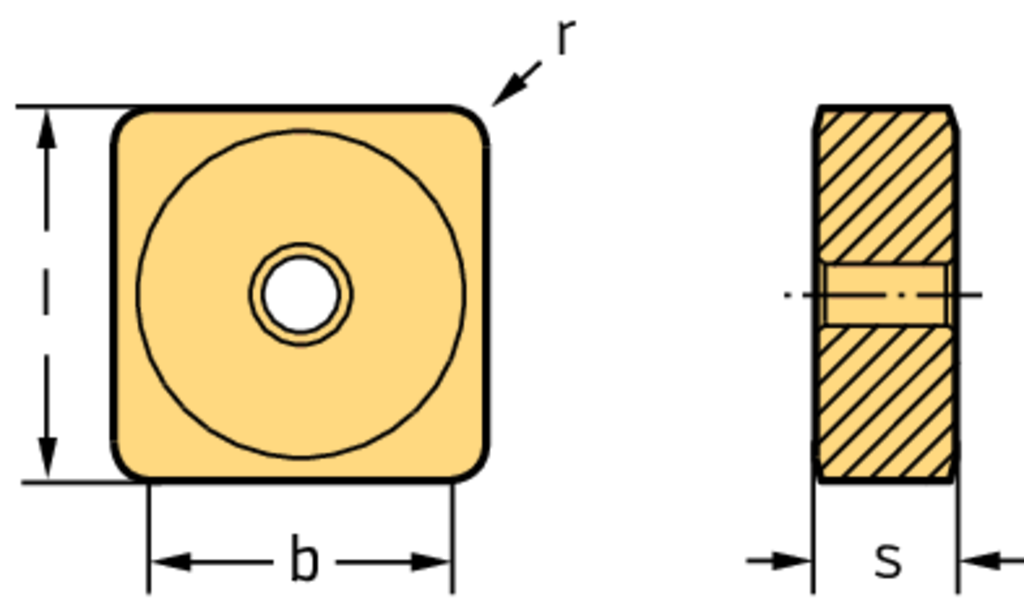

Tool designation (Designation) SNEF1204PNN-A27 WHH15X

Indexable insert tolerance class (Tolerance class) E

Number of cutting edges (Number of cutting edges) 8

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Corner radius (r) 1,2 mm

Wiper cutting edge length (b) 10,3 mm

Insert Shape SN

DESCRIPTION & FEATURES

Finishing inserts SNEF ...-A27 • clearance angle major=° • WHH15X • Corner radius=1,2mm • wiper edge length=10,3mm

Article number (J21):

SNEF1204PNN-A27 WHH15X

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,762 mm

Corner radius (D1):

1,2 mm

Wiper edge length (D6):

10,3 mm

Weight of item (D75):

0,012 kg

Cutting edge condition code (E41):

Cutting edge effective length (E7):

0,8 mm

Chip breaker manufacturers designation (E9):

A27

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,762 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,8 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WHH15X

Coating (H5):

TiAlN+TiAlCrSiN

Tipped cutting edge code (H6):

Standard designation (J11):

SNEF1204PNN
