Finishing inserts XNGX1205ANN-F67 WHH15X

Finishing inserts XNGX1205ANN-F67 WHH15X

€

30.08

EX VAT

€

37.00

INC VAT

Walter

Finishing inserts XNGX1205ANN-F67 WHH15X

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

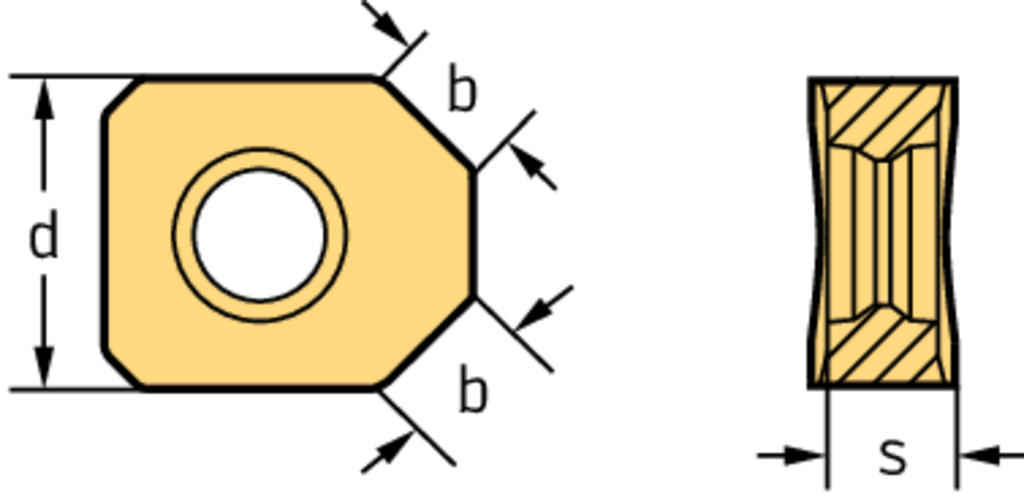

Tool designation (Designation) XNGX1205ANN-F67 WHH15X

Indexable insert tolerance class (Tolerance class) G

Number of cutting edges (Number of cutting edges) 2

Diameter of inscribed circle (d) 12,7 mm

Insert thickness (s) 5,39 mm

Wiper cutting edge length (b) 4,7 mm

Insert Shape XN

DESCRIPTION & FEATURES

Finishing inserts XNGX ...-F67 • clearance angle major=0° • WHH15X • Corner radius=1,2mm • wiper edge length=4,7mm

Article number (J21):

XNGX1205ANN-F67 WHH15X

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Clearance angle major (A2):

0 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

5,39 mm

Corner radius (D1):

1,2 mm

Wiper edge length (D6):

4,7 mm

Weight of item (D75):

0,01 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F67

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

6,1 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WHH15X

Coating (H5):

TiAlN+TiAlCrSiN

Tipped cutting edge code (H6):

Standard designation (J11):

XNGX1205ANN
