Finishing inserts P45424-2-G67 WAK15

€

35.98

EX VAT

€

44.26

INC VAT

Walter

Finishing inserts P45424-2-G67 WAK15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

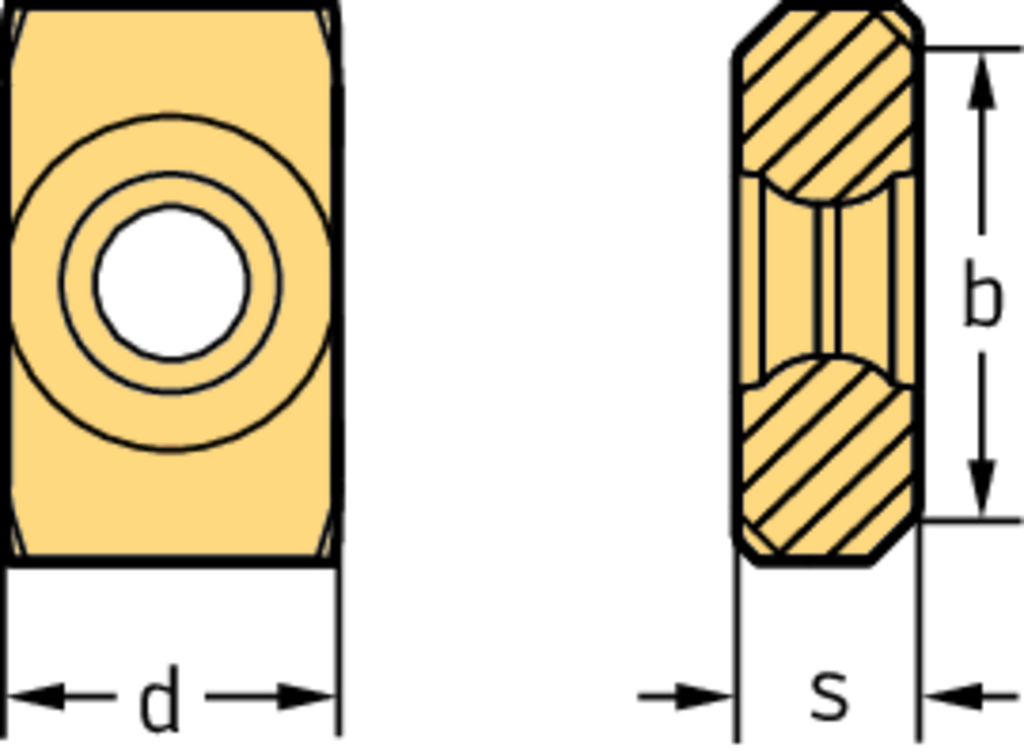

Tool designation (Designation) P45424-2-G67 WAK15

Indexable insert tolerance class (Tolerance class) G

Number of cutting edges (Number of cutting edges) 4

Diameter of inscribed circle (d) 20 mm

Insert thickness (s) 6,5 mm

Wiper cutting edge length (b) 15 mm

Insert Shape P4

DESCRIPTION & FEATURES

Finishing inserts P45424 ...-G67 • clearance angle major=° • WAK15 • Tigertec • wiper edge length=15mm

Article number (J21):

P45424-2-G67 WAK15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Cutting edge length (B1):

20 mm

Insert width (B2):

12 mm

Inscribed circle diameter (B3):

20 mm

Insert thickness (C1):

6,5 mm

Wiper edge length (D6):

15 mm

Weight of item (D75):

0,017 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

G67

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

6,5 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,5 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WAK15

Coating (H5):

TiCN+Al2O3+(TiN)

Tipped cutting edge code (H6):
