Finishing inserts P45420-G67 WHH15

€

27.20

EX VAT

€

33.46

INC VAT

Walter

Finishing inserts P45420-G67 WHH15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

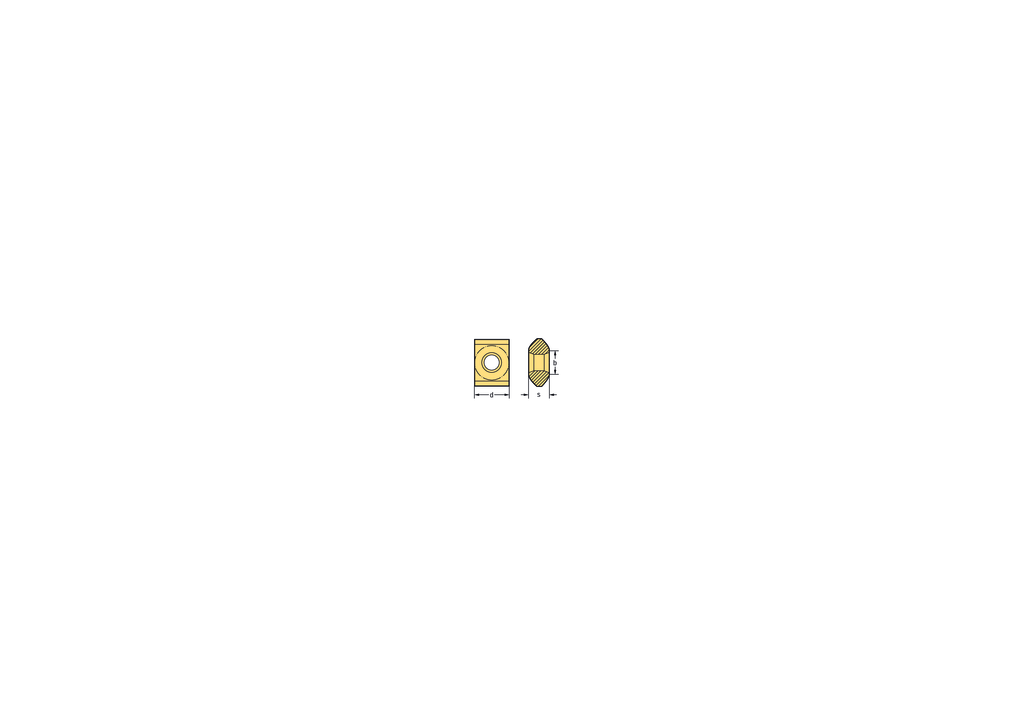

Tool designation (Designation) P45420-G67 WHH15

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 4

Diameter of inscribed circle (d) 9,52 mm

Insert thickness (s) 4,76 mm

Wiper cutting edge length (b) 7 mm

Insert Shape P4

DESCRIPTION & FEATURES

Finishing inserts P45420 ...-G67 • clearance angle major=0° • WHH15 • wiper edge length=7mm

Article number (J21):

P45420-G67 WHH15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

12,7 mm

Insert width (B2):

9,52 mm

Inscribed circle diameter (B3):

9,52 mm

Insert thickness (C1):

4,76 mm

Corner chamfer width (D2):

2,85 mm

Wiper edge length (D6):

7 mm

Weight of item (D75):

0,006 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

G67

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WHH15

Coating (H5):

TiAlN

Tipped cutting edge code (H6):
