Front piece helical cutter M4258-063-P30-02-36-F

Front piece helical cutter M4258-063-P30-02-36-F

€

689.00

EX VAT

€

847.47

INC VAT

Walter

Front piece helical cutter M4258-063-P30-02-36-F

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

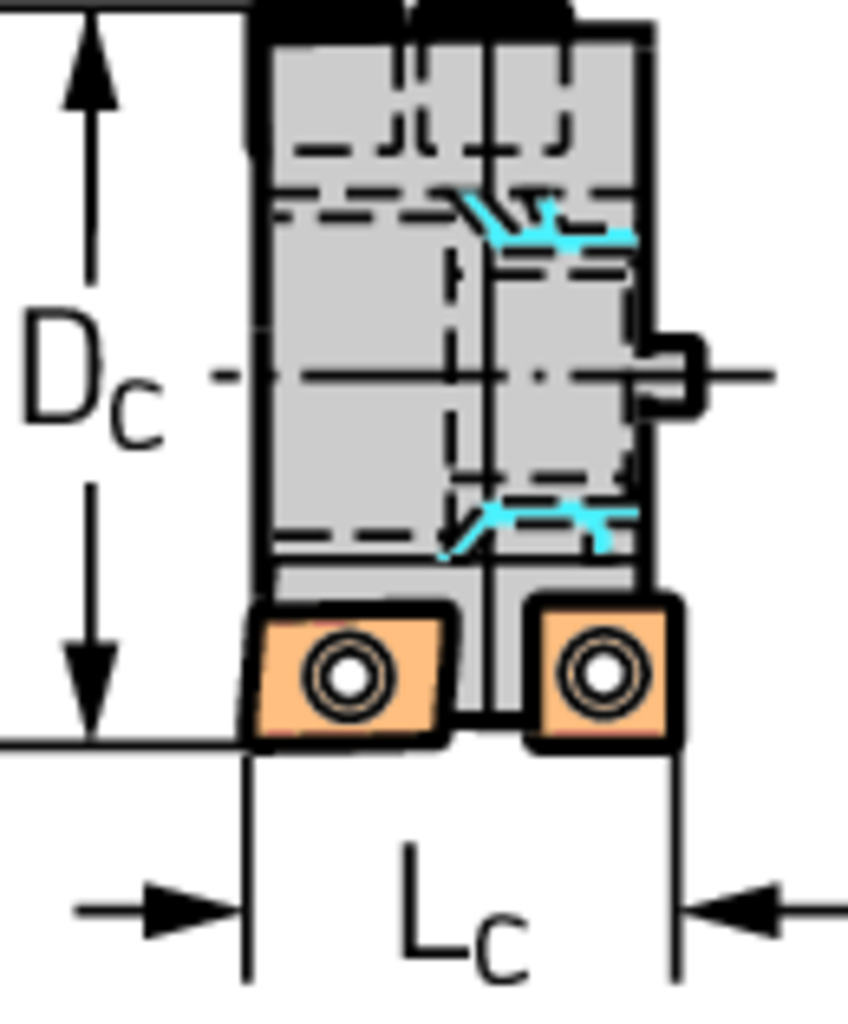

Tool designation (Designation) M4258-063-P30-02-36-F

Cutting edge diameter (D c) 63 mm

Cutting edge length (L c) 35 mm

Number of teeth (Z) 2

weight of item 0,3 kg

Number of indexable inserts (No. of indexable inserts) 6

Insert Shape M4

DESCRIPTION & FEATURES

Front piece helical cutter M4258 • κ=90° • metric • SD .. 1704 .. • Dc=63mm • Z=2

Article number (J21):

M4258-063-P30-02-36-F

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

63 mm

Depth of cut maximum (B2):

35 mm

Protruding length (B3):

35,1 mm

Usable length (B4):

35,1 mm

Overall length (B5):

36,9 mm

Rotational speed maximum (D6):

15000 1/min

Weight of item (D7):

0,33 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
