Grooving and copy turning – cutting inserts DX18-2E200N10-RF7 WSM23S

Grooving and copy turning – cutting inserts DX18-2E200N10-RF7 WSM23S

€

19.16

EX VAT

€

23.57

INC VAT

Walter

Grooving and copy turning – cutting inserts DX18-2E200N10-RF7 WSM23S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

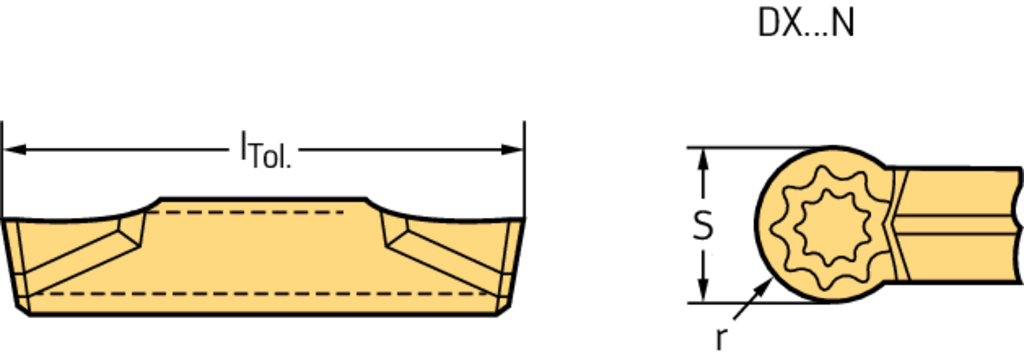

Tool designation (Designation) DX18-2E200N10-RF7 WSM23S

Insert width (s) 2 mm

Corner radius (r) 1 mm

Cutting edge length (l) 18,3 mm

Feed per revolution (f) 0,08 - 0,26 mm

Depth of cut (a p) 0,1 - 1 mm

Tolerance cutting width (S Tol) ±0,05 mm

Length tolerance (l Tol) ±0,15 mm

Insert Shape DX

DESCRIPTION & FEATURES

Grooving and copy turning – cutting inserts DX ...-RF7 • neutral • WSM23S • s=2mm • r=1mm

Article number (J21):

DX18-2E200N10-RF7 WSM23S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-77

Tool style code (BLD):

Profile form (A1):

Cutting width (A2):

2 mm

Spot radius (C8):

1 mm

Weight of item (D75):

0,002 kg

Clearance angle major (E1):

7 °

Cutting edge condition code (E41):

Chip breaker face count (E6):

Insert hand (E7):

Chip breaker manufacturers designation (E9):

RF7

Flute count (F2):

Insert length (G1):

18,3 mm

Insert width (G2):

1,7 mm

Insert thickness total (G4):

4,59 mm

Insert mounting style code (G5):

Insert thickness (G7):

3,68 mm

Grade manufacturer's designation (H3):

WSM23S

Coating (H5):

TiAlN+Al2O3+(Al)

Tipped cutting edge code (H6):
