Grooving and parting off – cutting inserts MX22-2E224N02-CF5 WSM23S

Grooving and parting off – cutting inserts MX22-2E224N02-CF5 WSM23S

€

43.20

EX VAT

€

53.14

INC VAT

Walter

Grooving and parting off – cutting inserts MX22-2E224N02-CF5 WSM23S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

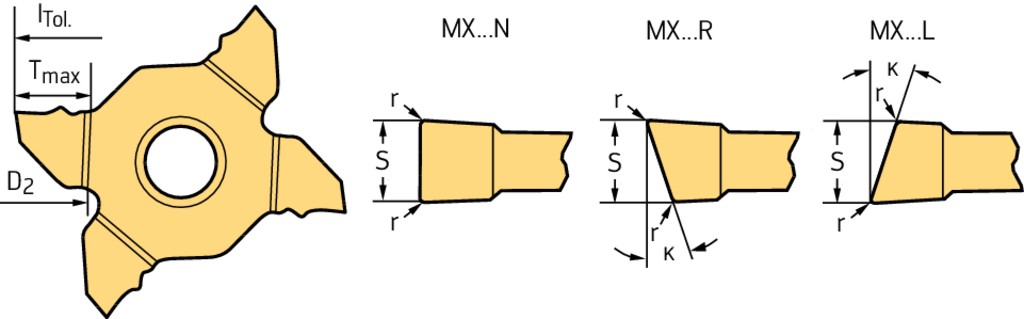

Tool designation (Designation) MX22-2E224N02-CF5 WSM23S

Insert width (s) 2,24 mm

Corner radius (r) 0,2 mm

Maximum cutting depth (T max) 6 mm

Work piece parting diameter maximum (D 2) 100 mm

Feed per revolution (f) 0,04 - 0,16 mm

Tolerance cutting width (S Tol) ±0,02 mm

Length tolerance (l Tol) ±0,03 mm

Insert Shape MX

DESCRIPTION & FEATURES

Grooving and parting off – cutting inserts MX ...-CF5 • neutral • WSM23S • Tigertec Silver • s=2,24mm • r=0,2mm

Article number (J21):

MX22-2E224N02-CF5 WSM23S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-77

Tool style code (BLD):

Profile form (A1):

Cutting width (A2):

2,24 mm

Corner radius right hand (C5):

0,2 mm

Corner radius left hand (C6):

0,2 mm

Weight of item (D75):

0,012 kg

Clearance angle major (E1):

6 °

Chip breaker face count (E6):

Insert hand (E7):

Chip breaker manufacturers designation (E9):

CF5

Flute count (F2):

Insert length (G1):

22 mm

Insert thickness total (G4):

3,35 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

6 mm

Insert thickness (G7):

3,35 mm

Grade manufacturer's designation (H3):

WSM23S

Coating (H5):

TiAlN+Al2O3+(Al)

Tipped cutting edge code (H6):
