Grooving and parting off – cutting inserts UX-19E1900N15-GD2 WKP33S

Grooving and parting off – cutting inserts UX-19E1900N15-GD2 WKP33S

€

44.54

EX VAT

€

54.78

INC VAT

Walter

Grooving and parting off – cutting inserts UX-19E1900N15-GD2 WKP33S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

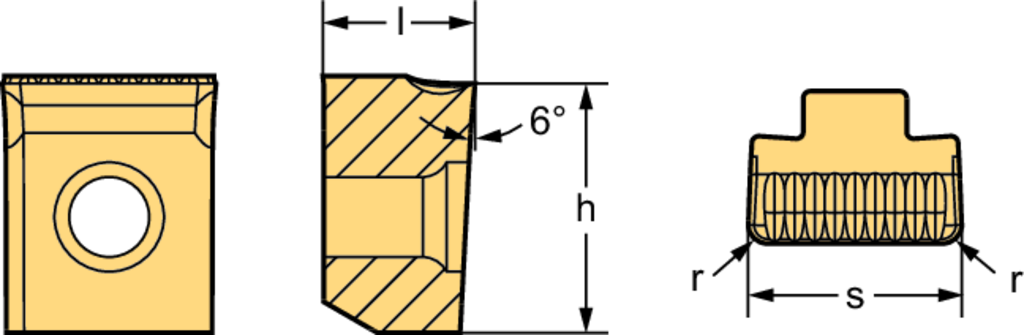

Tool designation (Designation) UX-19E1900N15-GD2 WKP33S

Insert width (s) 19 mm

Corner radius (r) 1,5 mm

Cutting edge length (l) 13,6 mm

Height (h) 18 mm

Feed per revolution (f) 0,25 - 0,6 mm

Tolerance cutting width (S Tol) ±0,2 mm

Length tolerance (l Tol) ±0,1 mm

Insert Shape UX

DESCRIPTION & FEATURES

Grooving and parting off – cutting inserts UX ...-GD2 • neutral • WKP33S • Tigertec Silver • s=19mm • r=1,5mm

Article number (J21):

UX-19E1900N15-GD2 WKP33S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-77

Tool style code (BLD):

Profile form (A1):

Cutting width (A2):

19 mm

Weight of item (D75):

0,046 kg

Clearance angle major (E1):

6 °

Chip breaker face count (E6):

Insert hand (E7):

Chip breaker manufacturers designation (E9):

GD2

Flute count (F2):

Insert length (G1):

13,55 mm

Insert thickness total (G4):

18 mm

Insert mounting style code (G5):

Insert thickness (G7):

18 mm

Grade manufacturer's designation (H3):

WKP33S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):
