Grooving and recessing 3° – Cutting inserts MX22-2L280L01-VG8 WSM23SGrooving and recessing 3° – Cutting inserts MX22-2L280L01-VG8 WSM23S
Grooving and recessing 3° – Cutting inserts MX22-2L280L01-VG8 WSM23S Grooving and recessing 3° – Cutting inserts MX22-2L280L01-VG8 WSM23S

Grooving and recessing 3° – Cutting inserts MX22-2L280L01-VG8 WSM23S

€
43.20
EX VAT
€
53.14
INC VAT
Walter
Grooving and recessing 3° – Cutting inserts MX22-2L280L01-VG8 WSM23S
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

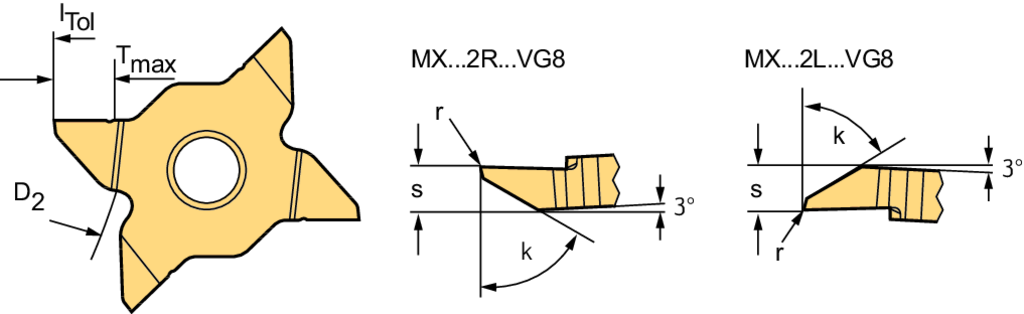

Tool designation (Designation) MX22-2L280L01-VG8 WSM23S
Insert width (s) 2,8 mm
Corner radius (r) 0,05 mm
Approach angle (κ) 60 Deg
Maximum cutting depth (T max) 5,5 mm
Work piece parting diameter maximum (D 2) 100 mm
Feed per revolution (f) 0,05 - 0,12 mm
Tolerance cutting width (S Tol) ±0,02 mm
Length tolerance (l Tol) ±0,03 mm
Insert Shape MX
DESCRIPTION & FEATURES
Grooving and recessing 3° – Cutting inserts MX ...-VG8 • Left • WSM23S • Tigertec Silver • s=2,8mm • r=0,05mm
Article number (J21):
MX22-2L280L01-VG8 WSM23S
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-77
Tool style code (BLD):
0
Profile form (A1):
0
Cutting width (A2):
2,8 mm
Cutting edge angle major left hand (B2):
60 °
Corner radius right hand (C5):
0,05 mm
Corner radius left hand (C6):
0,05 mm
Weight of item (D75):
0,012 kg
Clearance angle major (E1):
6 °
Chip breaker face count (E6):
1
Insert hand (E7):
L
Chip breaker manufacturers designation (E9):
VG8
Flute count (F2):
4
Insert length (G1):
23 mm
Insert thickness total (G4):
3,35 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
6 mm
Insert thickness (G7):
3,35 mm
Grade manufacturer's designation (H3):
WSM23S
Coating (H5):
TiAlN+Al2O3+(Al)
Tipped cutting edge code (H6):
S
