Grooving module – Radial grooving G1634-P G1634-43L-3T33GX34-P

Grooving module – Radial grooving G1634-P G1634-43L-3T33GX34-P

€

167.00

EX VAT

€

205.41

INC VAT

Walter

Grooving module – Radial grooving G1634-P G1634-43L-3T33GX34-P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

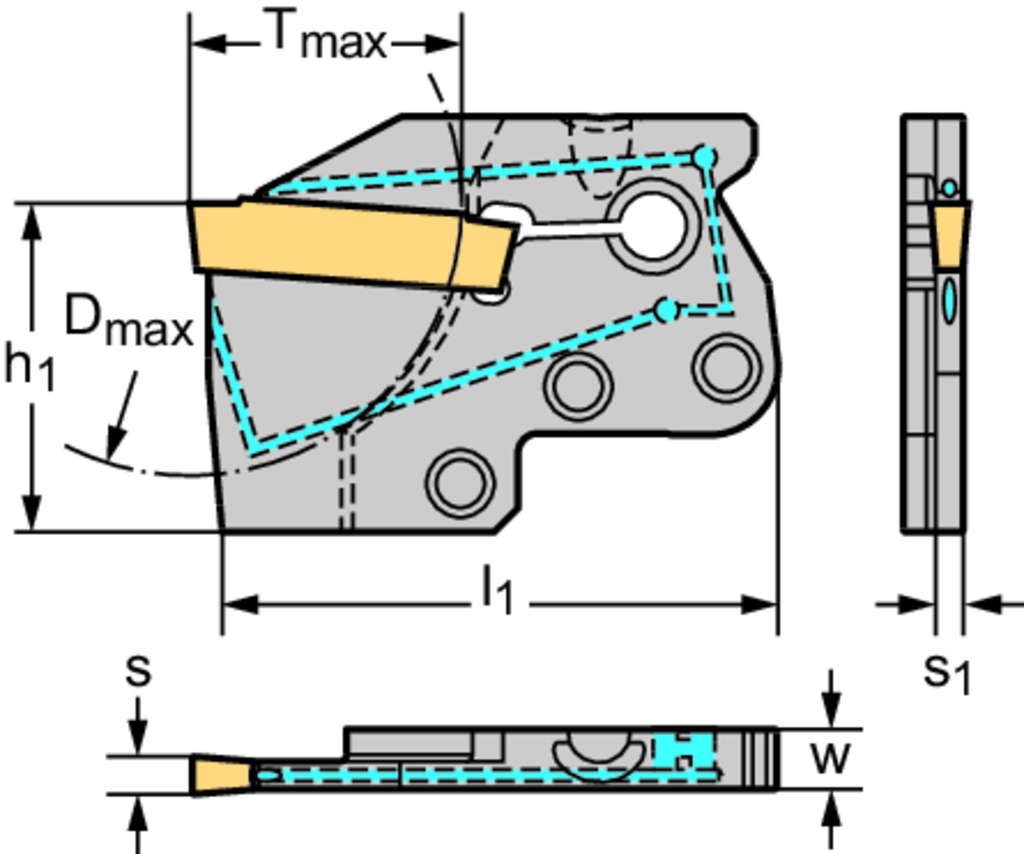

Tool designation (Designation) G1634-43L-3T33GX34-P

Insert width (s) 3 mm

Maximum cutting depth (T max) 33 mm

work piece parting diameter maximum (D max) 65 mm

Center height (h 1) 24 mm

Adaptor width (W) 7,2 mm

Overall length (l 1) 61 mm

Body width (s 1) 2,4 mm

Insert Shape G1

DESCRIPTION & FEATURES

Grooving module – Radial grooving G1634-P • metric • Left • GX34

Article number (J21):

G1634-43L-3T33GX34-P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-175

Tool style code (BLD):

Cutting width (A18):

3 mm

Functional length (A3):

61 mm

Functional height (A4):

24 mm

Cutting depth maximum (A8):

33 mm

Overall length (B5):

61 mm

Connection code type machine side (C11):

PMA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

043L

Shank height (C4):

43 mm

Weight of item (D7):

0,04 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Clamping type code (F5):

Body material code (H4):

Data chip provision (J7):
