Grooving module – Radial grooving G1332.IMR-GAD3N-GX16Grooving module – Radial grooving G1332.IMR-GAD3N-GX16
Grooving module – Radial grooving G1332.IMR-GAD3N-GX16 Grooving module – Radial grooving G1332.IMR-GAD3N-GX16

Grooving module – Radial grooving G1332.IMR-GAD3N-GX16

€
96.40
EX VAT
€
118.57
INC VAT
Walter
Grooving module – Radial grooving G1332.IMR-GAD3N-GX16
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

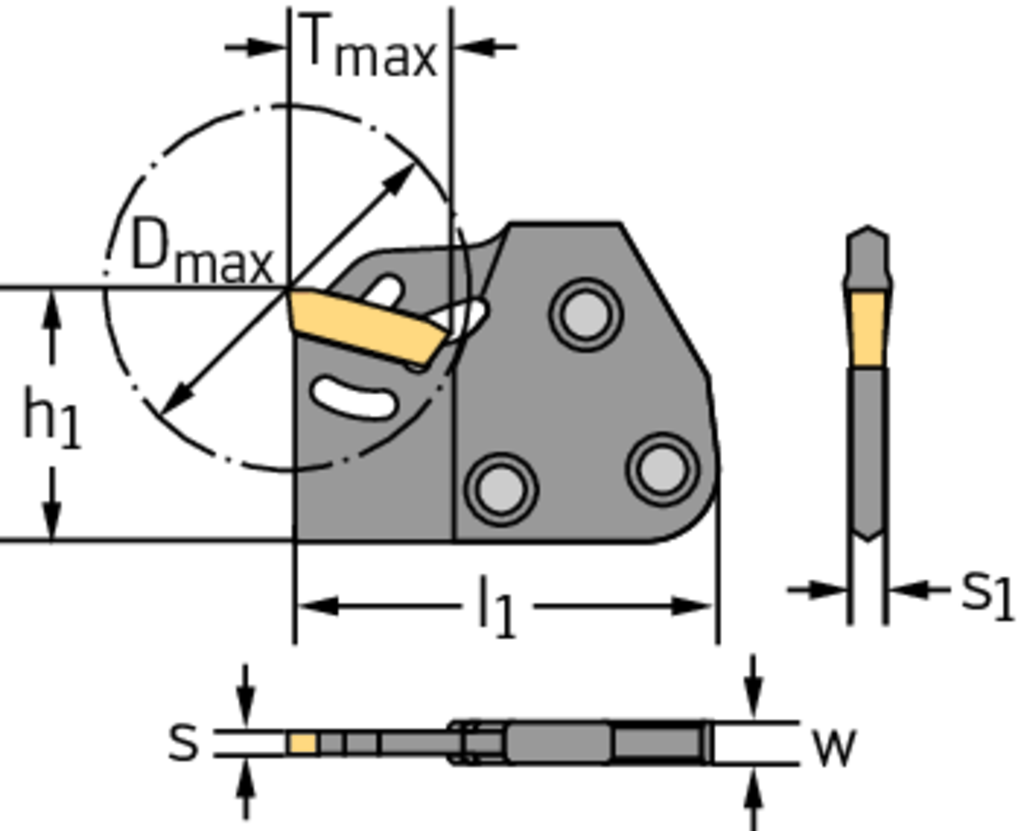

PRODUCT ATTRIBUTES
Tool designation (Designation) G1332.IMR-GAD3N-GX16
Insert width (s) 3 mm
Maximum cutting depth (T max) 15 mm
Center height (h 1) 24 mm
Adaptor width (W) 4 mm
Overall length (l 1) 41 mm
Body width (s 1) 2,2 mm
Insert Shape G1
DESCRIPTION & FEATURES
Grooving module – Radial grooving G1332 • metric • GX16
Article number (J21):
G1332.IMR-GAD3N-GX16
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-175
Tool style code (BLD):
4
Cutting width (A18):
3 mm
Functional height (A4):
24 mm
Cutting depth maximum (A8):
15 mm
Overall length (B5):
41 mm
ISO-tolerance class shank diameter (C31):
$$$$
Shank width (C8):
4 mm
Weight of item (D7):
0,037 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Clamping type code (F5):
C
Data chip provision (J7):
0
