Heavy Duty Face Mill M3016-250-B60-11-16

Heavy Duty Face Mill M3016-250-B60-11-16

€

2,229.00

EX VAT

€

2,741.67

INC VAT

Walter

Heavy Duty Face Mill M3016-250-B60-11-16

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

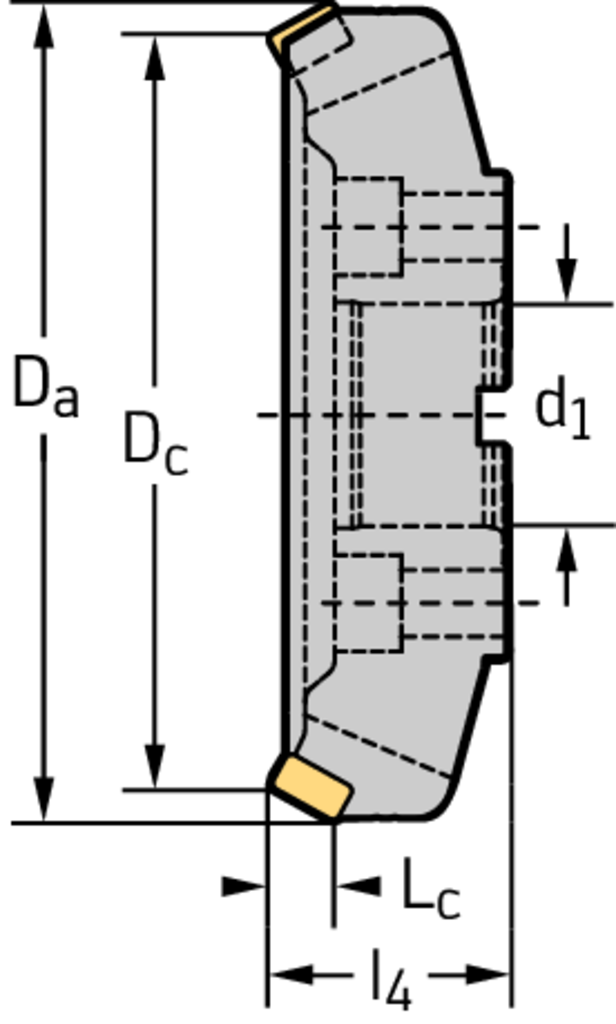

Tool designation (Designation) M3016-250-B60-11-16

Cutting edge diameter (D c) 250 mm

Maximum cutting diameter (D a) 268,6 mm

connection diameter (d 1) 60/50 B mm

functional length (l 4) 63 mm

cutting edge length (L c) 16 mm

Number of teeth (Z) 11

weight of item 20 kg

Number of indexable inserts (No. of indexable inserts) 11

Insert Shape M3

DESCRIPTION & FEATURES

Heavy Duty Face Mill M3016 • Parallel bore DIN 138 transverse keyway • κ=60° • metric • LN .. 2010 .. • Dc=250mm • Z=11

Article number (J21):

M3016-250-B60-11-16

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

250 mm

Cutting diameter maximum (A2):

268,6 mm

Body diameter (A3):

267,4 mm

Hub diameter (A4):

130 mm

Cutting depth maximum (B2):

16 mm

Overall length (B5):

63 mm

Connection code type machine side (C11):

SPK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0600

Connection diameter machine side (C3):

60 mm

Adjustment property (D4):

Rotational speed maximum (D6):

900 1/min

Weight of item (D7):

20 kg

Tool cutting edge angle (E1):

60 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

4 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, position A (J42):

LNMX 20 10 12

Data chip provision (J7):
