Helical milling cutters F5138.T36.040.Z02.34

Helical milling cutters F5138.T36.040.Z02.34

€

665.00

EX VAT

€

817.95

INC VAT

Walter

Helical milling cutters F5138.T36.040.Z02.34

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

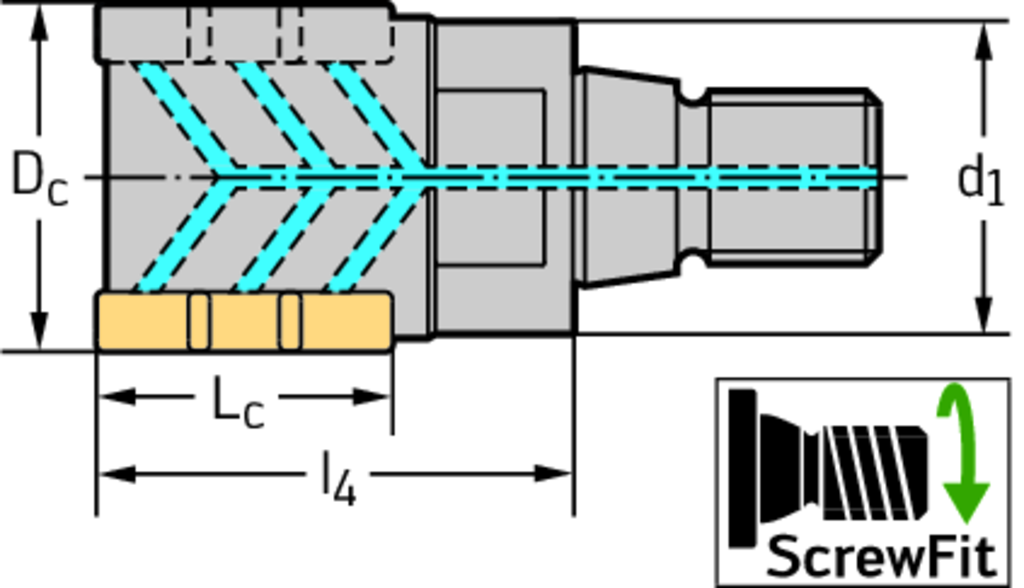

PRODUCT ATTRIBUTES

Tool designation (Designation) F5138.T36.040.Z02.34

Cutting edge diameter (D c) 40 mm

Connection diameter (d 1) T36 mm

Maximum projection length (l 4) 55 mm

Cutting edge length (L c) 34 mm

Number of teeth (Z) 2

weight of item 0,43 kg

Number of indexable inserts (No. of indexable inserts) 6

Insert Shape F5

DESCRIPTION & FEATURES

Helical milling cutters F5138 • ScrewFit • κ=90° • metric • LN .. 1306 .. • Dc=40mm • Z=2

Article number (J21):

F5138.T36.040.Z02.34

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

40 mm

Body diameter (A3):

37 mm

Depth of cut maximum (B2):

34 mm

Protruding length (B3):

55 mm

Usable length (B4):

55 mm

Overall length (B5):

90 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0360

Connection diameter machine side (C3):

36 mm

Rotational speed maximum (D6):

22500 1/min

Weight of item (D7):

0,43 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

1,1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
