Helical milling cutters F4238.US5.064.Z04.99

Helical milling cutters F4238.US5.064.Z04.99

€

2,046.00

EX VAT

€

2,516.58

INC VAT

Walter

Helical milling cutters F4238.US5.064.Z04.99

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

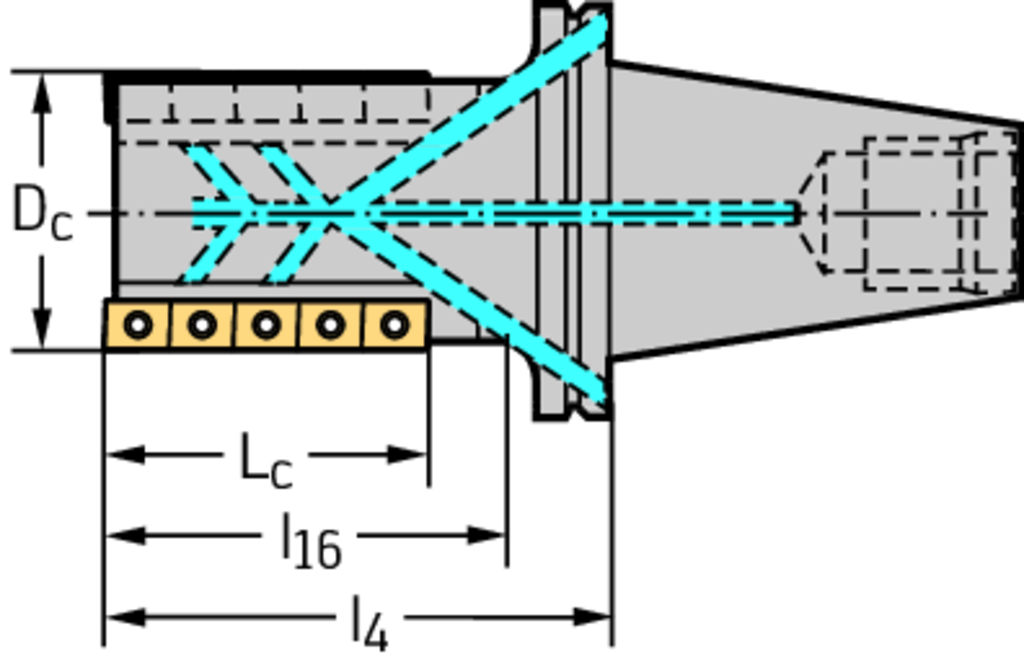

Tool designation (Designation) F4238.US5.064.Z04.99

Cutting edge diameter (D c) 2,5 inch

connection diameter (d 1) SK50 inch

Maximum projection length (l 4) 5,906 inch

Useable length (l 16) 5,119 inch

Cutting edge length (L c) 3,898 inch

Number of teeth (Z) 4

weight of item 4,7 lbs

Number of indexable inserts (No. of indexable inserts) 28

Insert Shape F4

DESCRIPTION & FEATURES

Helical milling cutters F4238 • SK DIN 69871 AD/B • κ=90° • inch • AD .. 1606 .. • Dc=64mm • Z=4

Article number (J21):

F4238.US5.064.Z04.99

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

63,5 mm

Body diameter (A3):

61 mm

Depth of cut maximum (B2):

99 mm

Protruding length (B3):

150 mm

Usable length (B4):

129 mm

Overall length (B5):

150 mm

Connection code type machine side (C11):

SKG

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

50 mm

Shank length (C4):

101,75 mm

Rotational speed maximum (D6):

12500 1/min

Weight of item (D7):

4,73 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0,79 °

Plunge depth maximum (E5):

0,95 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO7388-1

Standard letter to the standard number (J11):

AD/

Data chip provision (J7):
