Helical milling cutters F4238.N8.040.Z03.57

Helical milling cutters F4238.N8.040.Z03.57

€

1,322.00

EX VAT

€

1,626.06

INC VAT

Walter

Helical milling cutters F4238.N8.040.Z03.57

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

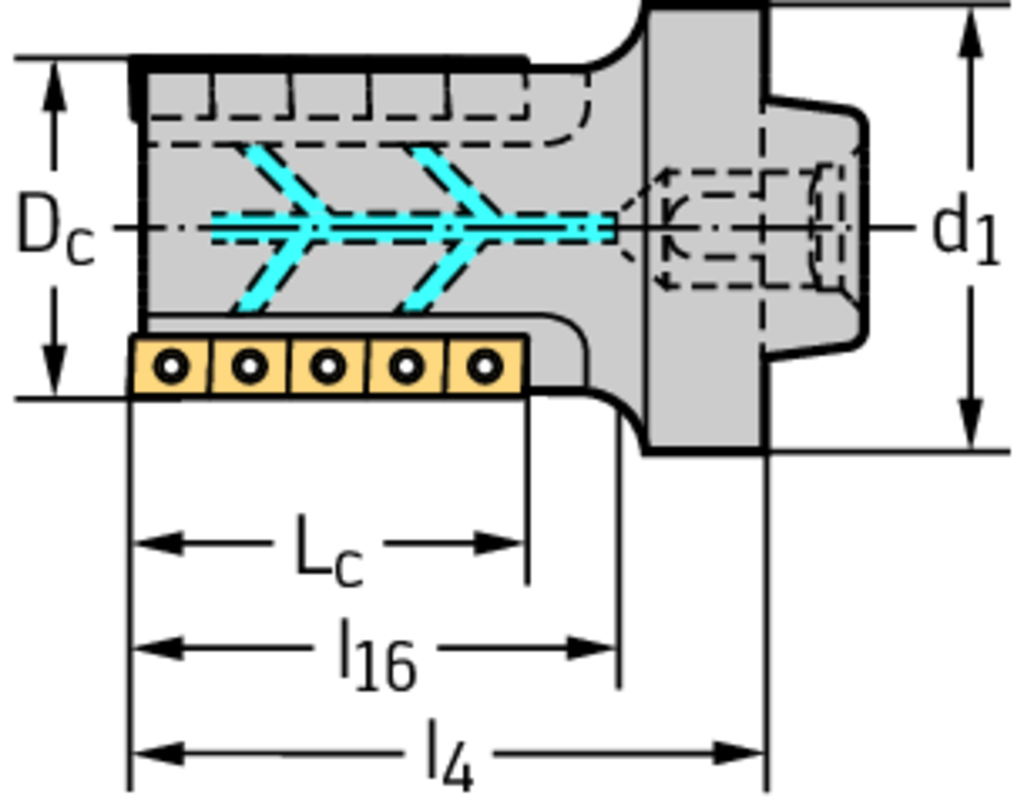

Tool designation (Designation) F4238.N8.040.Z03.57

Cutting edge diameter (D c) 40 mm

connection diameter (d 1) NCT 80 mm

Maximum projection length (l 4) 105 mm

Useable length (l 16) 68 mm

Cutting edge length (L c) 57 mm

Number of teeth (Z) 3

weight of item 1,5 kg

Number of indexable inserts (No. of indexable inserts) 12

Insert Shape F4

DESCRIPTION & FEATURES

Helical milling cutters F4238 • Modular NCT adaptor • κ=90° • metric • AD .. 1606 .. • Dc=40mm • Z=3

Article number (J21):

F4238.N8.040.Z03.57

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

40 mm

Body diameter (A3):

38,5 mm

Depth of cut maximum (B2):

57 mm

Protruding length (B3):

105 mm

Usable length (B4):

68 mm

Overall length (B5):

123 mm

Connection code type machine side (C11):

NCT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0800

Connection diameter machine side (C3):

80 mm

Shank length (C4):

18 mm

Rotational speed maximum (D6):

15800 1/min

Weight of item (D7):

1,45 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

2,46 °

Plunge depth maximum (E5):

1,4 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
