Helical milling cutters M4257.038-W38-02-54

Helical milling cutters M4257.038-W38-02-54

€

1,109.00

EX VAT

€

1,364.07

INC VAT

Walter

Helical milling cutters M4257.038-W38-02-54

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

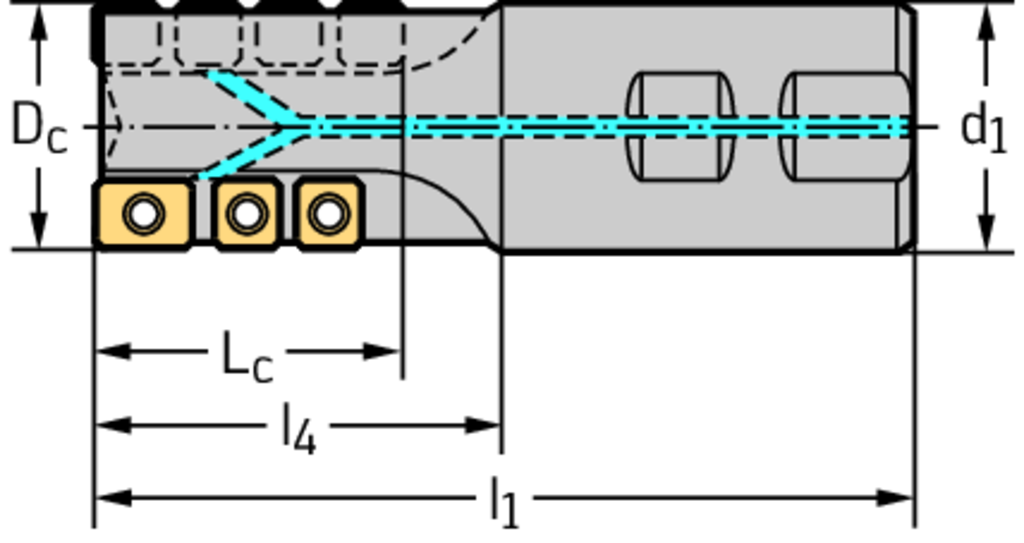

Tool designation (Designation) M4257.038-W38-02-54

Cutting edge diameter (D c) 1,5 inch

connection diameter (d 1) 1 1/2 inch

Maximum projection length (l 4) 2,75 inch

Overall length (l 1) 5,438 inch

Cutting edge length (L c) 2,126 inch

Number of teeth (Z) 2

weight of item 0,9 lbs

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape M4

DESCRIPTION & FEATURES

Helical milling cutters M4257 • DIN 1835 B shank • κ=90° • inch • LD .. 14T3 .. • Dc=38mm • Z=2

Article number (J21):

M4257.038-W38-02-54

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

38,1 mm

Body diameter (A3):

36,7 mm

Depth of cut maximum (B2):

30,24 mm

Protruding length (B3):

69,85 mm

Usable length (B4):

69,85 mm

Overall length (B5):

138,13 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1500

Connection diameter machine side (C3):

38,1 mm

ISO-tolerance class shank diameter (C31):

Rotational speed maximum (D6):

29700 1/min

Weight of item (D7):

0,927 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

1,4 °

Plunge depth maximum (E5):

0,8 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO3338-2

Standard letter to the standard number (J11):

Data chip provision (J7):
