Helical milling cutters M3255.051-B26-04-57

Helical milling cutters M3255.051-B26-04-57

€

1,097.00

EX VAT

€

1,349.31

INC VAT

Walter

Helical milling cutters M3255.051-B26-04-57

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

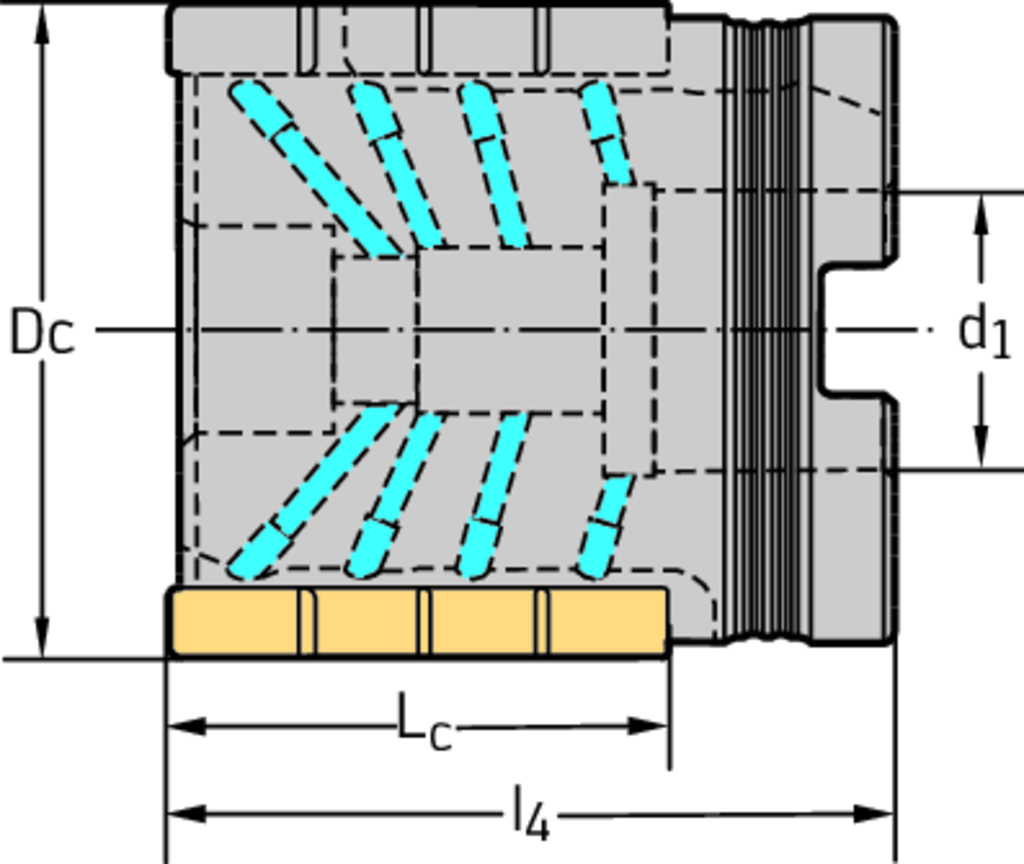

Tool designation (Designation) M3255.051-B26-04-57

Cutting edge diameter (D c) 2 inch

Connection diameter (d 1) 1 inch

Maximum projection length (l 4) 3,375 inch

Cutting edge length (L c) 2,244 inch

Number of teeth (Z) 4

weight of item 0,83 lbs

Number of indexable inserts (No. of indexable inserts) 4

Insert Shape M3

DESCRIPTION & FEATURES

Helical milling cutters M3255 • Parallel bore DIN 138 transverse keyway • κ=90° • inch • XN .. 1206 .. • Dc=51mm • Z=4

Article number (J21):

M3255.051-B26-04-57

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

50,8 mm

Body diameter (A3):

48,2 mm

Hub diameter (A4):

48,2 mm

Cutting width minimum (B11):

45,6 mm

Cutting depth maximum (B2):

1,3 mm

Overall length (B5):

85,725 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1000

Connection diameter machine side (C3):

25,4 mm

Mill tool type ISO (D11):

Adjustment property (D4):

Rotational speed maximum (D6):

20000 1/min

Weight of item (D7):

0,829 kg

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
