Helicalmilling cutters M4258-100-B40-04-77Helicalmilling cutters M4258-100-B40-04-77
Helicalmilling cutters M4258-100-B40-04-77 Helicalmilling cutters M4258-100-B40-04-77

Helicalmilling cutters M4258-100-B40-04-77

€
2,379.00
EX VAT
€
2,926.17
INC VAT
Walter
Helicalmilling cutters M4258-100-B40-04-77
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

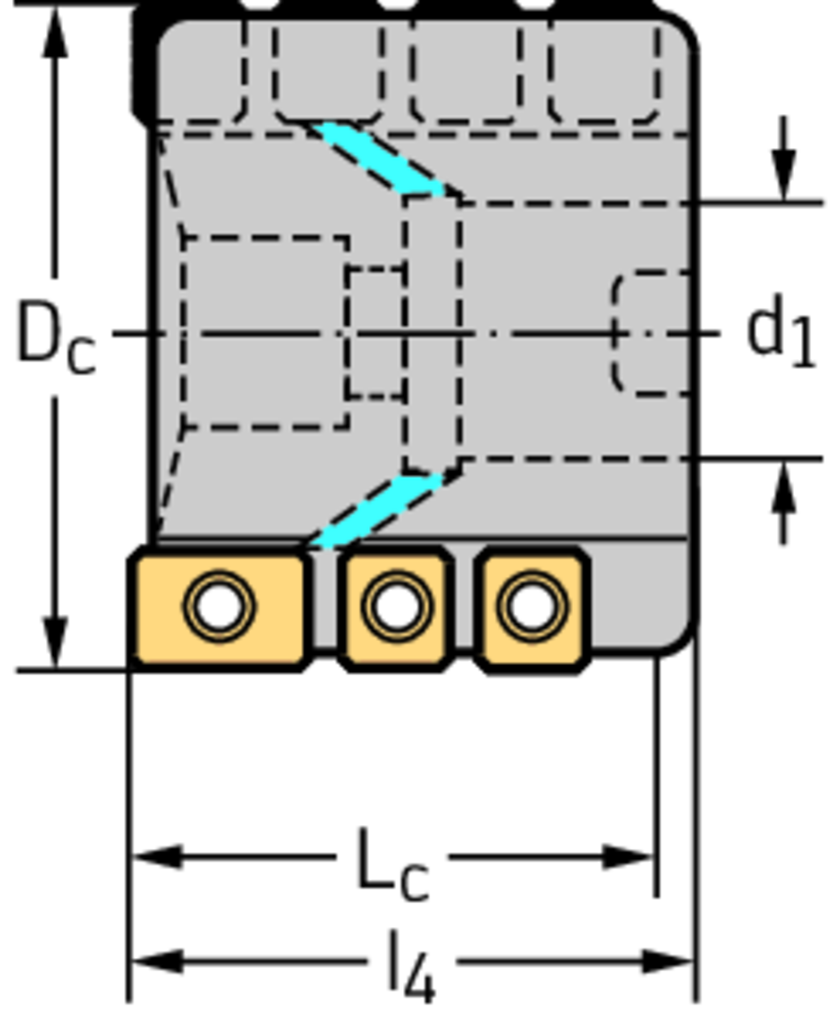

Tool designation (Designation) M4258-100-B40-04-77
Cutting edge diameter (D c) 100 mm
connection diameter (d 1) 40 mm
Maximum projection length (l 4) 80 mm
Cutting edge length (L c) 77 mm
Number of teeth (Z) 4
weight of item 2,4 kg
Number of indexable inserts (No. of indexable inserts) 8
Insert Shape M4
DESCRIPTION & FEATURES
Helicalmilling cutters M4258 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • SD .. 1704 .. • Dc=100mm • Z=4
Article number (J21):
M4258-100-B40-04-77
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
4
Cutting diameter (A1):
100 mm
Body diameter (A3):
98,135 mm
Hub diameter (A4):
98 mm
Cutting width minimum (B11):
37,73 mm
Cutting depth maximum (B2):
1 mm
Overall length (B5):
80 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
22
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
0
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Mill tool type ISO (D11):
J
Adjustment property (D4):
0
Rotational speed maximum (D6):
11400 1/min
Weight of item (D7):
2,39 kg
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
4
Face effective cutting edge count (F22):
4
Face mounted insert count (G13):
4
Peripheral mounted insert count (G15):
28
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
