Helicalmilling cutters M4258-080-C8-03-116-M

Helicalmilling cutters M4258-080-C8-03-116-M

€

3,432.00

EX VAT

€

4,221.36

INC VAT

Walter

Helicalmilling cutters M4258-080-C8-03-116-M

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

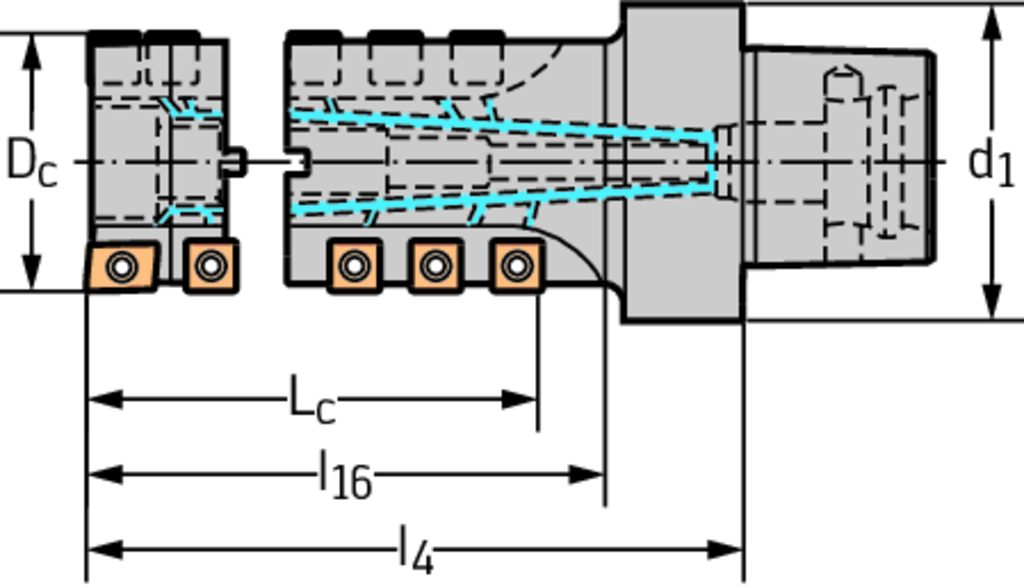

Tool designation (Designation) M4258-080-C8-03-116-M

Cutting edge diameter (D c) 80 mm

connection diameter (d 1) C8 mm

Maximum projection length (l 4) 150 mm

Useable length (l 16) 150 mm

Cutting edge length (L c) 118 mm

Number of teeth (Z) 3

weight of item 3,9 kg

Number of indexable inserts (No. of indexable inserts) 33

Insert Shape M4

DESCRIPTION & FEATURES

Helicalmilling cutters M4258 • Walter Capto^TM ISO 26623 • κ=90° • metric • SD .. 1704 .. • Dc=80mm • Z=3

Article number (J21):

M4258-080-C8-03-116-M

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

80 mm

Body diameter (A3):

78,135 mm

Depth of cut maximum (B2):

118 mm

Protruding length (B3):

150 mm

Usable length (B4):

150 mm

Overall length (B5):

198 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0800

Connection diameter machine side (C3):

80 mm

Shank length (C4):

48 mm

Rotational speed maximum (D6):

12900 1/min

Weight of item (D7):

3,9 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO26623-1

Data chip provision (J7):
