Helicalmilling cutters M4258.102-B38-04-77

Helicalmilling cutters M4258.102-B38-04-77

€

2,379.00

EX VAT

€

2,926.17

INC VAT

Walter

Helicalmilling cutters M4258.102-B38-04-77

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

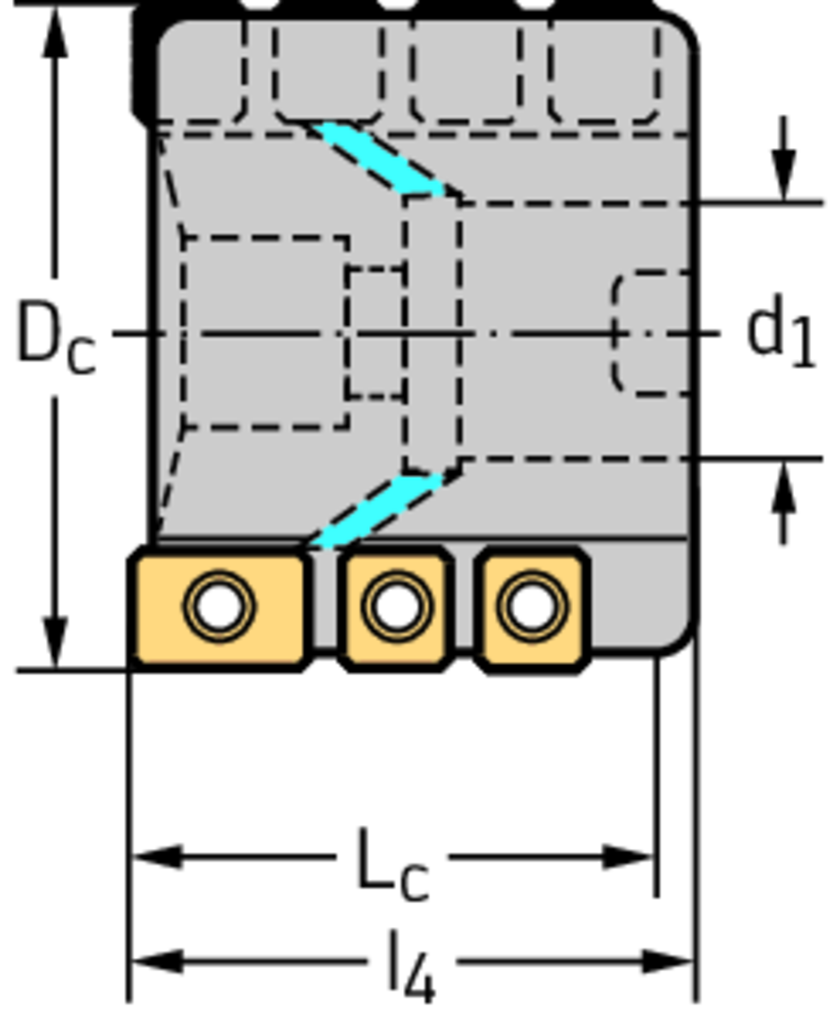

Tool designation (Designation) M4258.102-B38-04-77

Cutting edge diameter (D c) 4 inch

Connection diameter (d 1) 1 1/2 inch

Maximum projection length (l 4) 3,15 inch

cutting edge length (L c) 3,032 inch

Number of teeth (Z) 4

weight of item 2,7 lbs

Number of indexable inserts (No. of indexable inserts) 4

Insert Shape M4

DESCRIPTION & FEATURES

Helicalmilling cutters M4258 • Parallel bore DIN 138 transverse keyway • κ=90° • inch • SD .. 1204 .. • Dc=102mm • Z=4

Article number (J21):

M4258.102-B38-04-77

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

101,6 mm

Body diameter (A3):

99,735 mm

Hub diameter (A4):

100 mm

Cutting width minimum (B11):

37,73 mm

Cutting depth maximum (B2):

0,8 mm

Overall length (B5):

80 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1500

Connection diameter machine side (C3):

38,1 mm

Mill tool type ISO (D11):

Adjustment property (D4):

Rotational speed maximum (D6):

11300 1/min

Weight of item (D7):

2,686 kg

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
