Heptagon face milling cutters F4045.B40.160.Z20.06

Heptagon face milling cutters F4045.B40.160.Z20.06

€

2,138.00

EX VAT

€

2,629.74

INC VAT

Walter

Heptagon face milling cutters F4045.B40.160.Z20.06

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

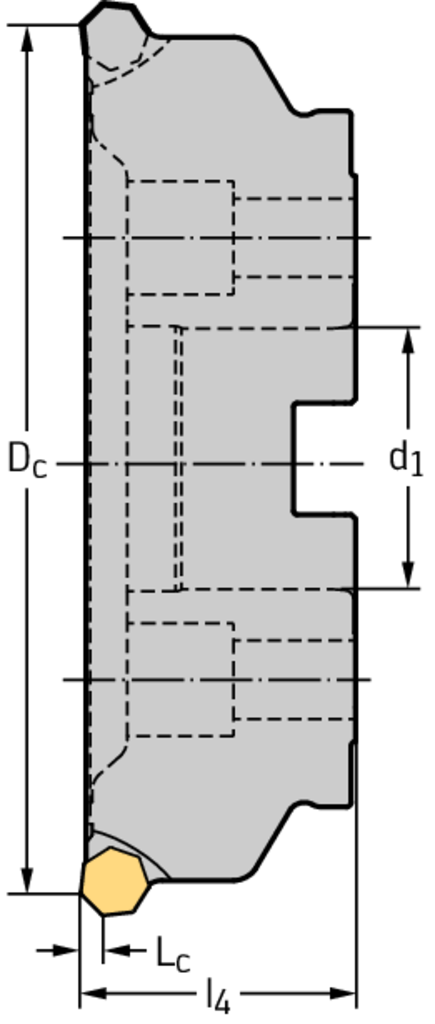

Tool designation (Designation) F4045.B40.160.Z20.06

Cutting edge diameter (D c) 160 mm

Shank diameter (d 1) 40/40 B mm

Functional length (l 4) 63 mm

Cutting edge length (L c) 6 mm

Number of teeth (Z) 20

weight of item 6,3 kg

Number of indexable inserts (No. of indexable inserts) 20

Insert Shape F4

DESCRIPTION & FEATURES

Heptagon face milling cutters F4045 • Parallel bore DIN 138 transverse keyway • κ=45° • metric • XN .. 0906 .. • Dc=160mm • Z=20

Article number (J21):

F4045.B40.160.Z20.06

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

160 mm

Cutting diameter maximum (A2):

172,8 mm

Body diameter (A3):

171 mm

Hub diameter (A4):

130 mm

Cutting depth maximum (B2):

6 mm

Overall length (B5):

63 mm

Connection code type machine side (C11):

SPK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

Adjustment property (D4):

Rotational speed maximum (D6):

4000 1/min

Weight of item (D7):

6,304 kg

Tool cutting edge angle (E1):

45 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

1,2 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
