Heptagon face milling cutters F4045.B40.125.Z18.04

Heptagon face milling cutters F4045.B40.125.Z18.04

€

1,724.00

EX VAT

€

2,120.52

INC VAT

Walter

Heptagon face milling cutters F4045.B40.125.Z18.04

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

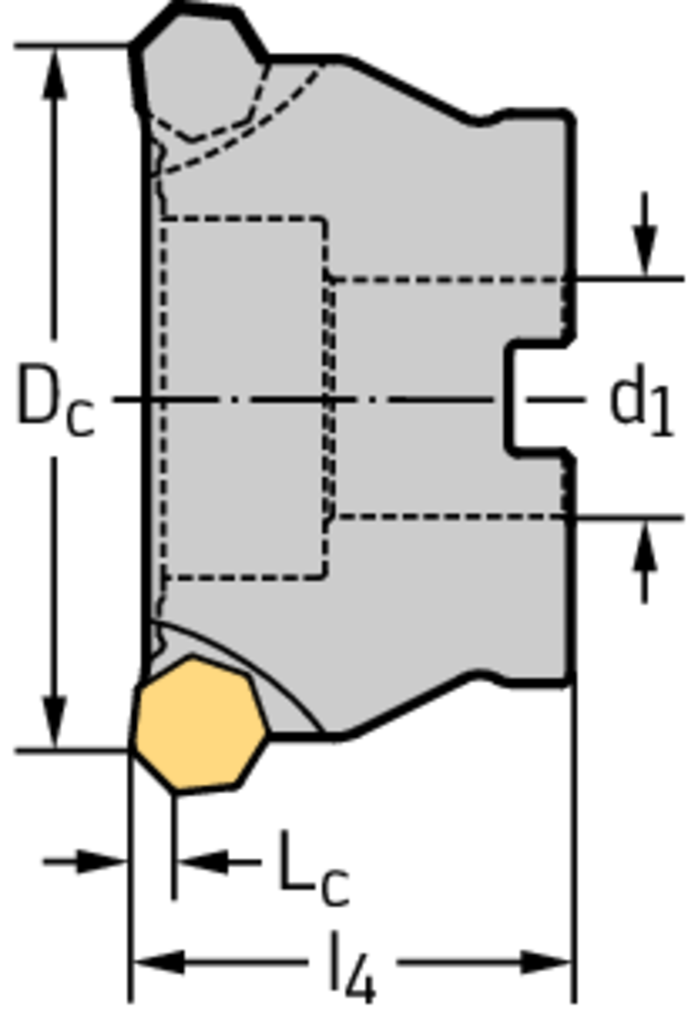

Tool designation (Designation) F4045.B40.125.Z18.04

Cutting edge diameter (D c) 125 mm

Shank diameter (d 1) 40 mm

Functional length (l 4) 63 mm

Cutting edge length (L c) 4 mm

Number of teeth (Z) 18

weight of item 3,5 kg

Number of indexable inserts (No. of indexable inserts) 18

DESCRIPTION & FEATURES

Heptagon face milling cutters F4045 • Parallel bore DIN 138 transverse keyway • κ=45° • metric • XN .. 0705 .. • Dc=125mm • Z=18

Article number (J21):

F4045.B40.125.Z18.04

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

125 mm

Cutting diameter maximum (A2):

134,8 mm

Body diameter (A3):

133,6 mm

Hub diameter (A4):

80 mm

Cutting depth maximum (B2):

4 mm

Overall length (B5):

63 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

Adjustment property (D4):

Rotational speed maximum (D6):

7000 1/min

Weight of item (D7):

3,454 kg

Tool cutting edge angle (E1):

45 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
