High-feed milling cutter F2010.B.315.Z18.08.R755M

High-feed milling cutter F2010.B.315.Z18.08.R755M

€

3,534.00

EX VAT

€

4,346.82

INC VAT

Walter

High-feed milling cutter F2010.B.315.Z18.08.R755M

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

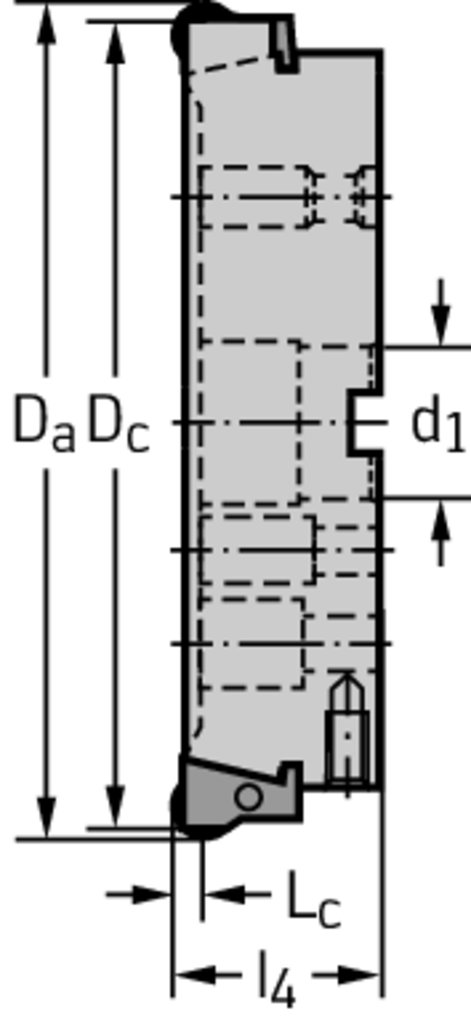

PRODUCT ATTRIBUTES

Tool designation (Designation) F2010.B.315.Z18.08.R755M

Cutting edge diameter (D c) 304.93 mm

Cutting edge diameter (D a *) 328 mm

Shank diameter (d 1) 60/50-60 BB mm

Functional length (l 4) 80 mm

Cutting edge length (L c) 2 mm

a (a r) 11,4 mm

Number of teeth (Z) 18

weight of item 26,2 kg

Number of indexable inserts (No. of indexable inserts) 18

Insert Shape F2

DESCRIPTION & FEATURES

High-feed milling cutter F2010 • Parallel bore DIN 138 transverse keyway • κ=15° • metric • SD .. 1204 .. • Dc=305mm • Z=18

Article number (J21):

F2010.B.315.Z18.08.R755M

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

304,93 mm

Cutting diameter maximum (A2):

328 mm

Body diameter (A3):

309,8 mm

Hub diameter (A4):

220 mm

Cutting depth maximum (B2):

2 mm

Overall length (B5):

80 mm

Connection code type machine side (C11):

SPK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0600

Connection diameter machine side (C3):

60 mm

Adjustment property (D4):

Rotational speed maximum (D6):

3350 1/min

Weight of item (D7):

26,2 kg

Tool cutting edge angle (E1):

15 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

1,3 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
