High-feed milling cutter M4002-032-A32-04-01

High-feed milling cutter M4002-032-A32-04-01

€

350.00

EX VAT

€

430.50

INC VAT

Walter

High-feed milling cutter M4002-032-A32-04-01

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

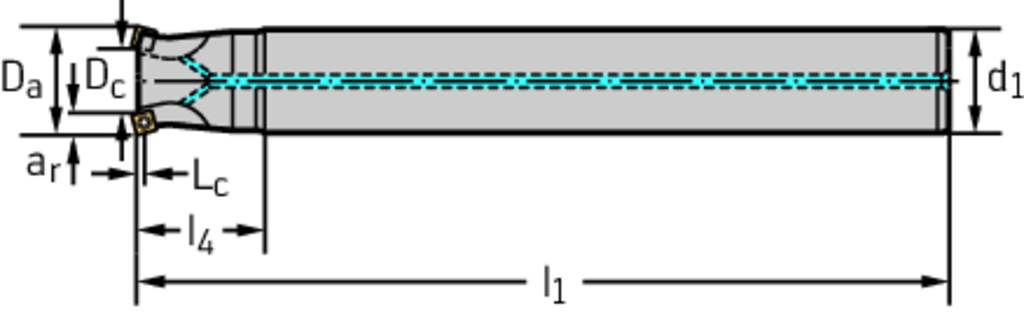

Tool designation (Designation) M4002-032-A32-04-01

Cutting edge diameter (D c) 20.4 mm

Cutting edge diameter (D a *) 32 mm

Shank diameter (d 1) 32 mm

Functional length (l 4) 40 mm

Overall length (l 1) 250 mm

cutting edge length (L c) 1 mm

a (a r) 5,7 mm

Number of teeth (Z) 4

weight of item 1,5 kg

Number of indexable inserts (No. of indexable inserts) 4

Insert Shape M4

DESCRIPTION & FEATURES

High-feed milling cutter M4002 • Parallel shank • κ=15° • metric • SD .. 06T2 .. • Dc=20mm • Z=4

Article number (J21):

M4002-032-A32-04-01

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

20,4 mm

Cutting diameter maximum (A2):

32 mm

Body diameter (A3):

30,508 mm

Depth of cut maximum (B2):

1 mm

Protruding length (B3):

40 mm

Usable length (B4):

40 mm

Overall length (B5):

250 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0320

Connection diameter machine side (C3):

32 mm

Shank length (C4):

60 mm

Rotational speed maximum (D6):

19500 1/min

Weight of item (D7):

1,5 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

15 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

2,3 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
