High-feed milling cutter F4030.UW19.026.Z02.01High-feed milling cutter F4030.UW19.026.Z02.01
High-feed milling cutter F4030.UW19.026.Z02.01 High-feed milling cutter F4030.UW19.026.Z02.01

High-feed milling cutter F4030.UW19.026.Z02.01

€
333.00
EX VAT
€
409.59
INC VAT
Walter
High-feed milling cutter F4030.UW19.026.Z02.01
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

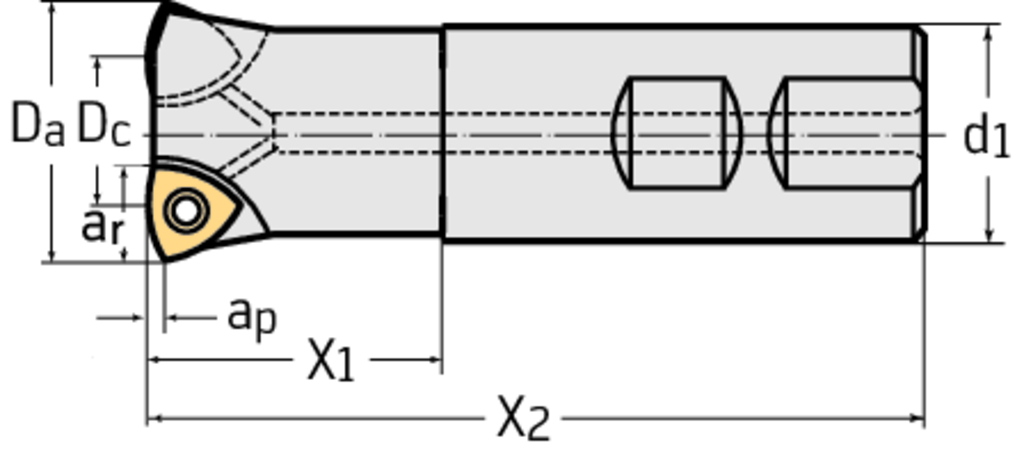

Tool designation (Designation) F4030.UW19.026.Z02.01
Cutting edge diameter (D c) 0,543 inch
Cutting edge diameter (D a) 1 inch
Connection size code (d 1) 3/4 inch
Functional length (l 4) 2,09 inch
Cutting edge length (L c) 0,039 inch
a (a r) 0,236 inch
Number of teeth (Z) 2
weight of item 0,2 lbs
Number of indexable inserts (No. of indexable inserts) 2
Insert Shape F4
DESCRIPTION & FEATURES
High-feed milling cutter F4030 • DIN 1835 B shank • κ=21° • inch • P2 .. 36X1 .. • Dc=14mm • Z=2
Article number (J21):
F4030.UW19.026.Z02.01
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
2
Cutting diameter (A1):
13,8 mm
Cutting diameter maximum (A2):
25,4 mm
Body diameter (A3):
18,5 mm
Depth of cut maximum (B2):
1 mm
Protruding length (B3):
53,09 mm
Usable length (B4):
53,09 mm
Overall length (B5):
104,48 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
10
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0750
Connection diameter machine side (C3):
19,05 mm
ISO-tolerance class shank diameter (C31):
h6
Rotational speed maximum (D6):
34600 1/min
Weight of item (D7):
0,238 kg
Adjustment property (D9):
0
Tool cutting edge angle (E1):
21 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
10,5 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
2
Face effective cutting edge count (F22):
2
Face mounted insert count (G13):
2
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Standard (J1):
ISO3338-2
Standard letter to the standard number (J11):
WE
Data chip provision (J7):
0
