HSK-T adaptor – vibration damped A3000-HSK-T A3000-H63T-Q32-224

HSK-T adaptor – vibration damped A3000-HSK-T A3000-H63T-Q32-224

€

2,472.00

EX VAT

€

3,040.56

INC VAT

Walter

HSK-T adaptor – vibration damped A3000-HSK-T A3000-H63T-Q32-224

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

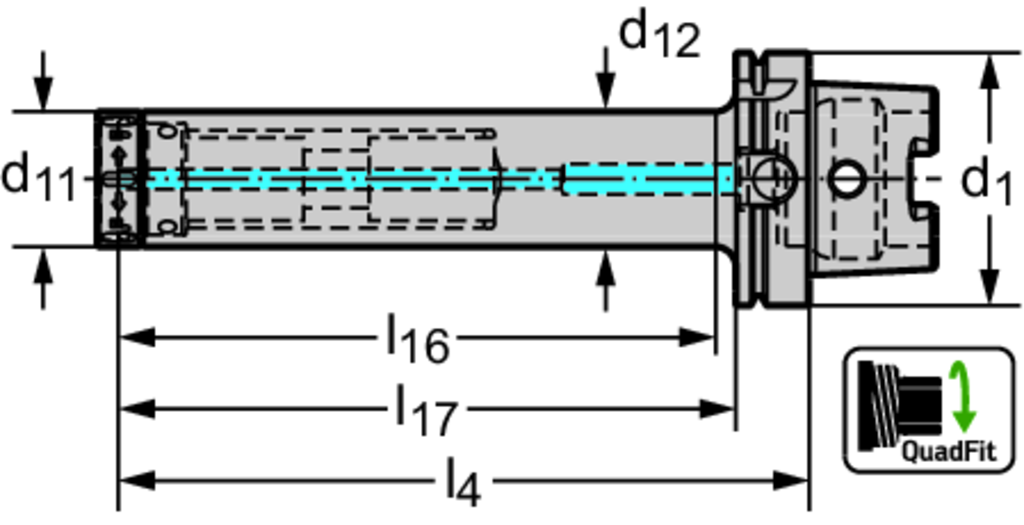

Tool designation (Designation) A3000-H63T-Q32-224

Connection size code (d 1) 63 mm

Connection diameter (d 11) Q32

Body diameter (d 12) 32 mm

Maximum projection length (l 4) 224 mm

Useable length (l 16) 176 mm

Clamping diameter depth (l 17) 198 mm

Weight (WT) 2 kg

Insert Shape A3

DESCRIPTION & FEATURES

HSK-T adaptor – vibration damped A3000-HSK-T • Accure tec • metric • neutral • 32mm

Article number (J21):

A3000-H63T-Q32-224

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Flange diameter (A4):

63 mm

Body length 1 (B1):

198 mm

Length 2 (B2):

176 mm

Protruding length (B3):

198 mm

Overall length (B4):

261,4 mm

Functional length (B71):

198 mm

Functional height (B72):

0 mm

Functional width (B73):

0 mm

Connection code type machine side (C11):

HSK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0630

Connection diameter machine side (C3):

63 mm

Shank length (C4):

32 mm

Connection code type workpiece side (C51):

SGL

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0320

Weight of item (D7):

2 kg

Cutting direction (E1):

Neutral

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO12164-3

Standard letter to the standard number (J11):

Data chip provision (J7):

Insert Type:

32mm
