HSS drills with Morse taper, extra long A4611-35HSS drills with Morse taper, extra long A4611-35
HSS drills with Morse taper, extra long A4611-35 HSS drills with Morse taper, extra long A4611-35

HSS drills with Morse taper, extra long A4611-35

€
444.00
EX VAT
€
546.12
INC VAT
Walter Titex
HSS drills with Morse taper, extra long A4611-35
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

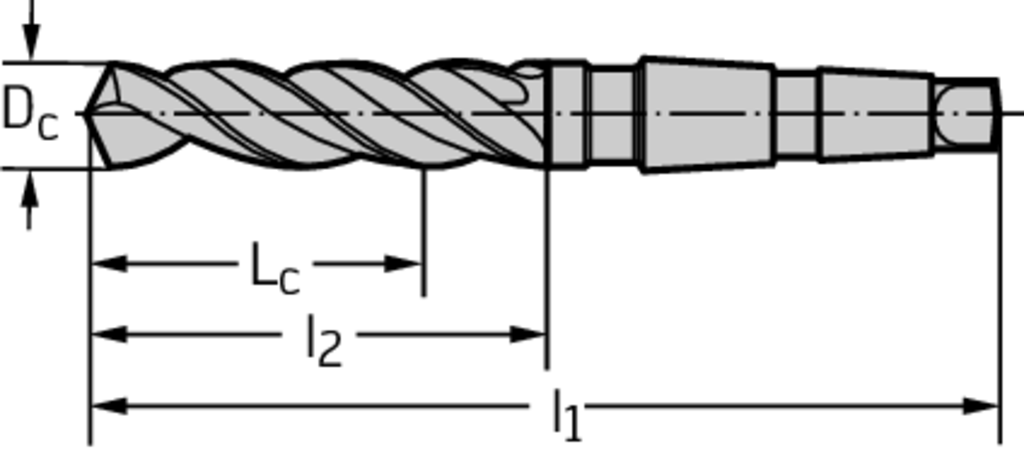

Tool designation (Designation) A4611-35
Cutting edge diameter (D c) 35 mm
Cutting edge length (L c) 304 mm
Overall length (l 1) 530 mm
Projection length (l 2) 340 mm
Morse taper (MK) MK4 B
Insert Shape A4
DESCRIPTION & FEATURES
HSS drills with Morse taper, extra long A4611 • DIN 1870 I • 16xD • Morse taper • point angle 118° • Dc=35mm
Article number (J21):
A4611-35
Standard number of properties layout (NSM):
DIN4000-81
Company code (J3):
W
Tool style code (BLD):
1
Cutting diameter 1st step minimum (A11):
35 mm
Protruding length (B3):
412,5 mm
Usable length (B4):
304 mm
Overall length (B5):
530 mm
Length chip flute (B6):
340 mm
Point length (B7):
10,515 mm
Functional length (B71):
401,985 mm
Connection code type machine side (C11):
MKG
Connection code form at machine side (C12):
20
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0040
Connection diameter machine side (C3):
4 mm
Shank length (C4):
117,5 mm
Flute count (D1):
2
Flute helix hand (D2):
R
Flute helix angle (D3):
30 °
Rotational speed maximum (D6):
2000 1/min
Weight of item (D7):
2,247 kg
Point angle 1st step (E1):
118 °
Cutting direction (F1):
Right
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Grade manufacturer's designation (H3):
UNBESCHICH
Body material code (H4):
S
Standard (J1):
DIN 1870 I
Standard letter to the standard number (J11):
BE
Data chip provision (J7):
0
