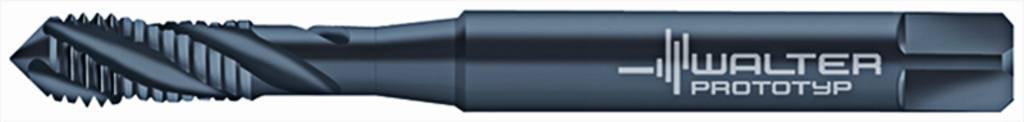

HSS-E machine taps M21513-M6X0.5

€

36.90

EX VAT

€

45.39

INC VAT

Walter Prototyp

HSS-E machine taps M21513-M6X0.5

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) M21513-M6X0.5

Thread size (D N) MF 6x0.5

thread pitch (P) 0,5 mm

Functional length (l 1) 80 mm

Cutting edge length (L c) 10 mm

Useable length (l 3) 30 mm

Connection diameter (d 1) 6 mm

clamping width (⃞) 4,9 mm

Driving square length (l 9) 8 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur Xpert M • ≤2,5xD • MF/6HX • DIN 371 • right hand flute 40° • Suitable for blind hole • VAP • MF 6x0.5 • P=0,5mm

Article number (J21):

M21513-M6X0.5

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

6 mm

Thread designation outside (A25):

MF 6x0.5

Thread pitch (A3):

0,5 mm

Thread tolerance class (A5):

6HX

Gate diameter (A6):

5,48 mm

Neck diameter (A9):

4,6 mm

Thread cutting part length (B1):

10 mm

Usable length (B2):

30 mm

Overall length (B3):

81,41 mm

Tap chamfer length (B4):

1,4 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

40 °

Weight of item (D7):

0,017 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

VAP

Body material code (H4):

Coating (H5):

Vaporisiert

Standard (J1):

DIN 371

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:
