HSS-E machine taps M225549-EGUNC5/16

€

50.33

EX VAT

€

61.91

INC VAT

Walter Prototyp

HSS-E machine taps M225549-EGUNC5/16

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

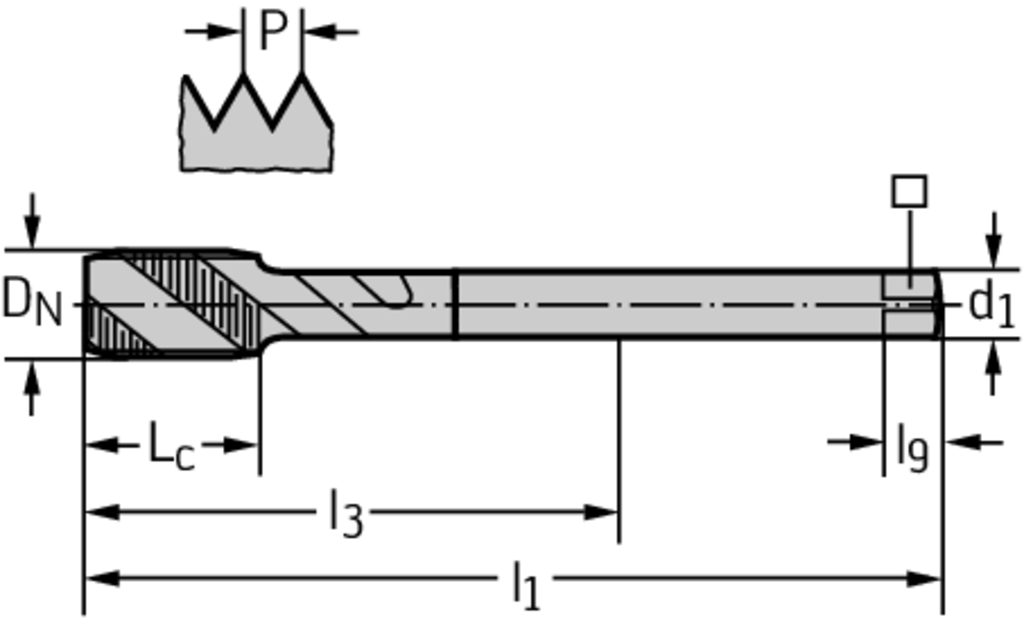

PRODUCT ATTRIBUTES

Tool designation (Designation) M225549-EGUNC5/16

Thread size (D N -P) EGUNC 5/16-18

Thread size (D N) EGUNC 5/16-18

Functional length (l 1) 100 mm

Cutting edge length (L c) 15 mm

Useable length (l 3) 77 mm

Connection diameter (d 1) 7 mm

clamping width (⃞) 5,5 mm

Driving square length (l 9) 8 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur Xpert M • ≤2,5xD • EGUNC/3B • DIN 2184-1 • right hand flute 50° • Suitable for blind hole • VAP • EGUNC 5/16-18 • P=18

Article number (J21):

M225549-EGUNC5/16

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

EGUNC

Thread diameter nominal inch (A22):

0,3847 inch

Thread diameter nominal fraction (A24):

5/16 inch

Thread designation outside (A25):

EGUNC 5/16-18

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

8,22 mm

Thread cutting part length (B1):

15 mm

Overall length (B3):

101,77 mm

Tap chamfer length (B4):

3,24 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0070

Connection diameter machine side (C3):

7 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

50 °

Weight of item (D7):

0,033 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

VAP

Body material code (H4):

Coating (H5):

Vaporisiert

Standard (J1):

DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

EGUNC
