HSS-E machine taps 20417-M6

HSS-E machine taps 20417-M6

HSS-E machine taps 20417-M6

HSS-E machine taps 20417-M6

HSS-E machine taps 20417-M6

€

81.00

EX VAT

€

99.63

INC VAT

Walter Prototyp

HSS-E machine taps 20417-M6

P

H

M

S

K

N

O

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

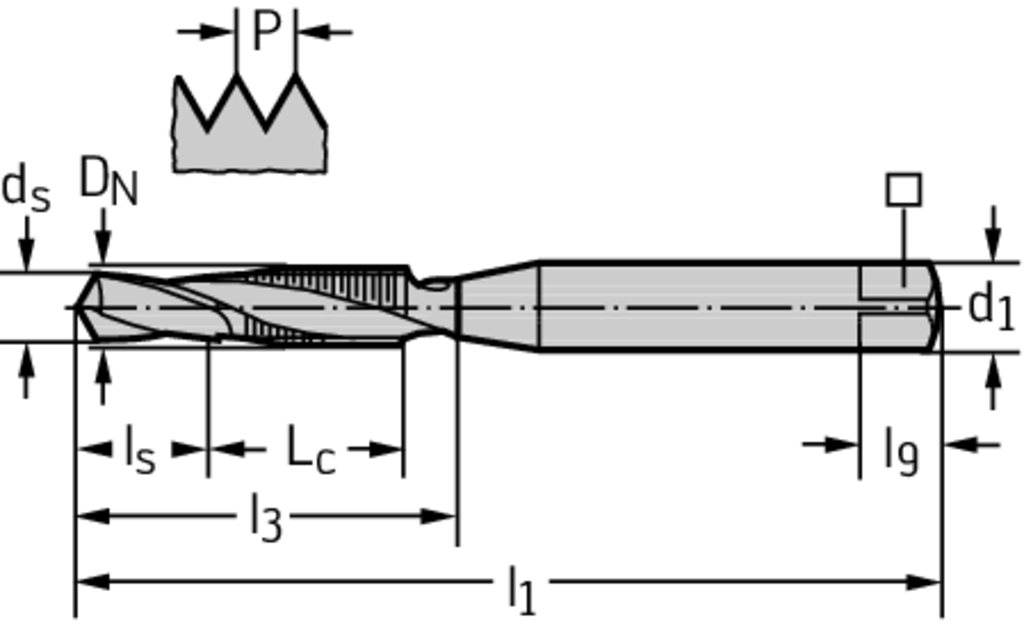

Tool designation (Designation) 20417-M6

Thread size (D N) M 6

Thread pitch (P) 1 mm

Functional length (l 1) 85 mm

Cutting edge length (L c) 18 mm

Core hole diameter (d s) 5 mm

l (l s) 13 mm

Useable length (l 3) 32 mm

Connection diameter (d 1) 6 mm

clamping width (⃞) 4,9 mm

Driving square length (l 9) 8 mm

Number of grooves (N) 2

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur Combi • M/6H • ~DIN 371 • M 6 • P=1mm

Article number (J21):

20417-M6

Company code (J3):

W

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

2

Thread form type (A1):

M

Thread diameter (A21):

6 mm

Thread designation outside (A25):

M 6

Thread pitch (A3):

1 mm

Thread tolerance class (A5):

6H

Gate diameter (A6):

5 mm

Thread cutting part length (B1):

18 mm

Usable length (B2):

32 mm

Overall length (B3):

85 mm

Tap chamfer length (B4):

2,005 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

21

Connection code unit base machine side (C14):

0

Connection code style machine side (C15):

5

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

h12

Shank length (C4):

27 mm

Flute count (D1):

2

Flute helix hand (D2):

R

Flute helix angle (D3):

30 °

Weight of item (D7):

0,016 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

1

Plug style (G3):

C

Coolant entry style code (H21):

0

Coolant exit style code (H22):

0

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

S

Coating (H5):

unbeschichtet

Standard (J1):

~DIN 371

Data chip provision (J7):

0

Hole Type:

Through hole

Thread Type:

M
