HSS-E machine taps 2136115-M33X2

€

553.00

EX VAT

€

680.19

INC VAT

Walter Prototyp

HSS-E machine taps 2136115-M33X2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

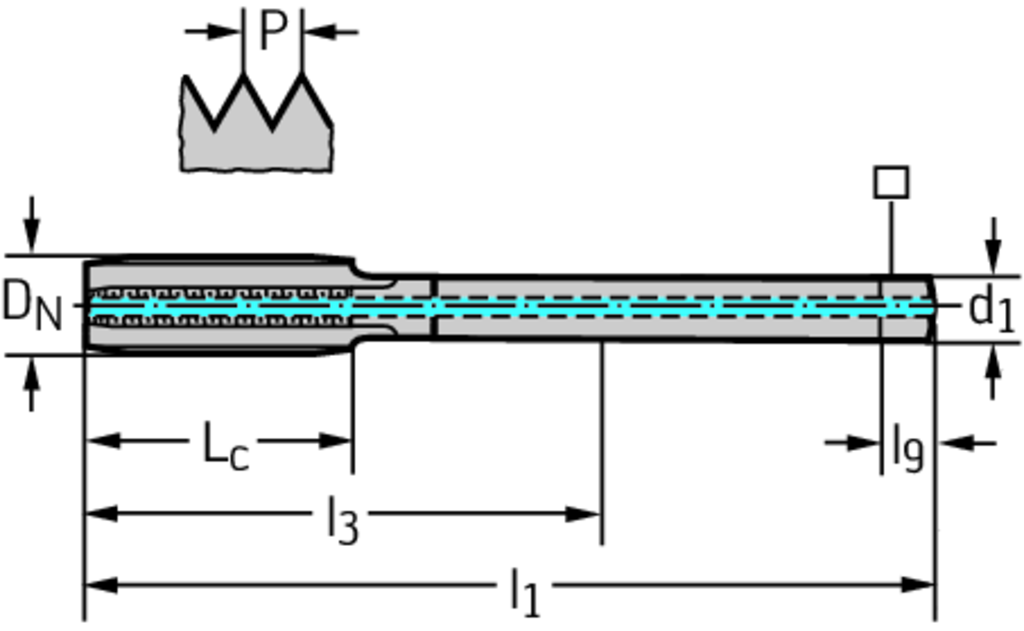

PRODUCT ATTRIBUTES

Tool designation (Designation) 2136115-M33X2

Thread size (D N) MF 33x2

thread pitch (P) 2 mm

Functional length (l 1) 160 mm

Cutting edge length (L c) 28 mm

Useable length (l 3) 93 mm

Connection diameter (d 1) 25 mm

clamping width (⃞) 20 mm

Driving square length (l 9) 23 mm

Number of grooves (N) 4

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur HT • ≤3,5xD • MF/6H • DIN 374 • neutral (straight) flute 0° • Suitable for blind hole • TIN • MF 33x2 • P=2mm

Article number (J21):

2136115-M33X2

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

33 mm

Thread designation outside (A25):

MF 33x2

Thread pitch (A3):

2 mm

Thread tolerance class (A5):

Gate diameter (A6):

30,9 mm

Neck diameter (A9):

24,7 mm

Thread cutting part length (B1):

28 mm

Overall length (B3):

160 mm

Tap chamfer length (B4):

5,6 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0250

Connection diameter machine side (C3):

25 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

42 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

0 °

Weight of item (D7):

0,546 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TIN

Body material code (H4):

Coating (H5):

TIN

Standard (J1):

DIN 374

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:
