HSS-E machine taps 23410-UNF4

€

33.53

EX VAT

€

41.24

INC VAT

Walter Prototyp

HSS-E machine taps 23410-UNF4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

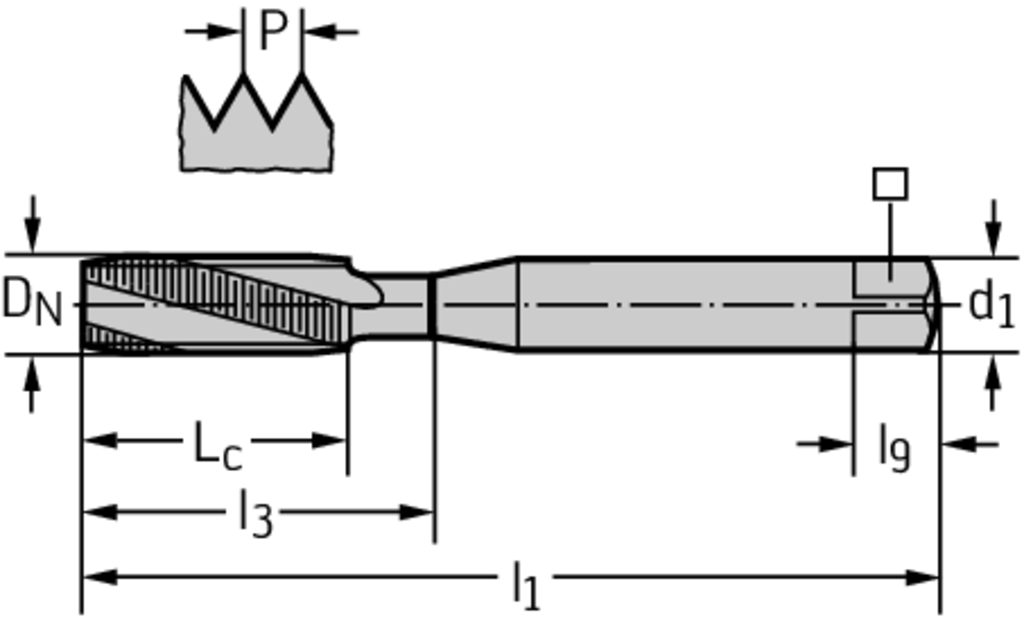

PRODUCT ATTRIBUTES

Tool designation (Designation) 23410-UNF4

Thread size (D N -P) UNF #4-48

Thread size (D N) UNF #4-48

Functional length (l 1) 56 mm

Cutting edge length (L c) 6 mm

Useable length (l 3) 18 mm

Connection diameter (d 1) 3,5 mm

clamping width (⃞) 2,7 mm

Driving square length (l 9) 6 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur N • ≤1,5xD • UNF/2B • DIN 2184-1 • right hand flute 15° • Suitable for blind hole • UNF #4-48 • P=48

Article number (J21):

23410-UNF4

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNF

Thread diameter nominal inch (A22):

0,112 inch

Thread diameter size (A23):

Thread designation outside (A25):

UNF #4-48

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

2,29 mm

Neck diameter (A9):

2,14 mm

Thread cutting part length (B1):

6 mm

Usable length (B2):

18 mm

Overall length (B3):

57,16 mm

Tap chamfer length (B4):

1,32 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0035

Connection diameter machine side (C3):

3,5 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

21 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

15 °

Weight of item (D7):

0,005 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

UNF
