HSS-E machine taps 20211-M4

HSS-E machine taps 20211-M4

HSS-E machine taps 20211-M4

HSS-E machine taps 20211-M4

HSS-E machine taps 20211-M4

€

20.63

EX VAT

€

25.37

INC VAT

Walter Prototyp

HSS-E machine taps 20211-M4

P

H

M

S

K

N

O

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

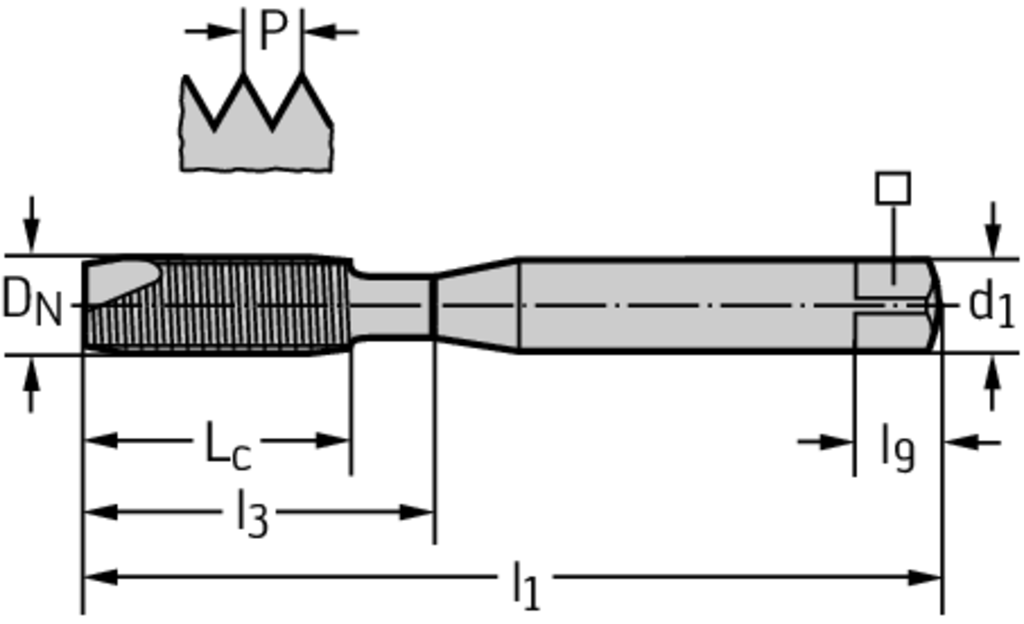

Tool designation (Designation) 20211-M4

Thread size (D N) M 4

thread pitch (P) 0,7 mm

Overall length (l 1) 63 mm

Cutting edge length (L c) 12 mm

Useable length (l 3) 21 mm

Shank diameter (d 1) 4,5 mm

clamping width (⃞) 3,4 mm

Driving square length (l 9) 6 mm

Number of grooves (N) 2

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Prototex OS • ≤1xD • M/6H • DIN 371 • Suitable for through hole • M 4 • P=0,7mm

Article number (J21):

20211-M4

Company code (J3):

W

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

2

Thread form type (A1):

M

Thread diameter (A21):

4 mm

Thread designation outside (A25):

M 4

Thread pitch (A3):

0,7 mm

Thread tolerance class (A5):

6H

Gate diameter (A6):

3,27 mm

Neck diameter (A9):

3,01 mm

Thread cutting part length (B1):

12 mm

Usable length (B2):

21 mm

Overall length (B3):

64,65 mm

Tap chamfer length (B4):

3,15 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

21

Connection code unit base machine side (C14):

0

Connection code style machine side (C15):

5

Connection size code machine side (C2):

0045

Connection diameter machine side (C3):

4,5 mm

ISO-tolerance class shank diameter (C31):

h9

Shank length (C4):

21 mm

Flute count (D1):

2

Flute helix angle (D3):

0 °

Weight of item (D7):

0,007 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

1

Plug style (G3):

B

Coolant entry style code (H21):

0

Coolant exit style code (H22):

0

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

S

Coating (H5):

unbeschichtet

Standard (J1):

DIN 371

Data chip provision (J7):

0

Hole Type:

Through hole

Thread Type:

M
