HSS-E machine taps 21410-M5X0.5

€

37.88

EX VAT

€

46.59

INC VAT

Walter Prototyp

HSS-E machine taps 21410-M5X0.5

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

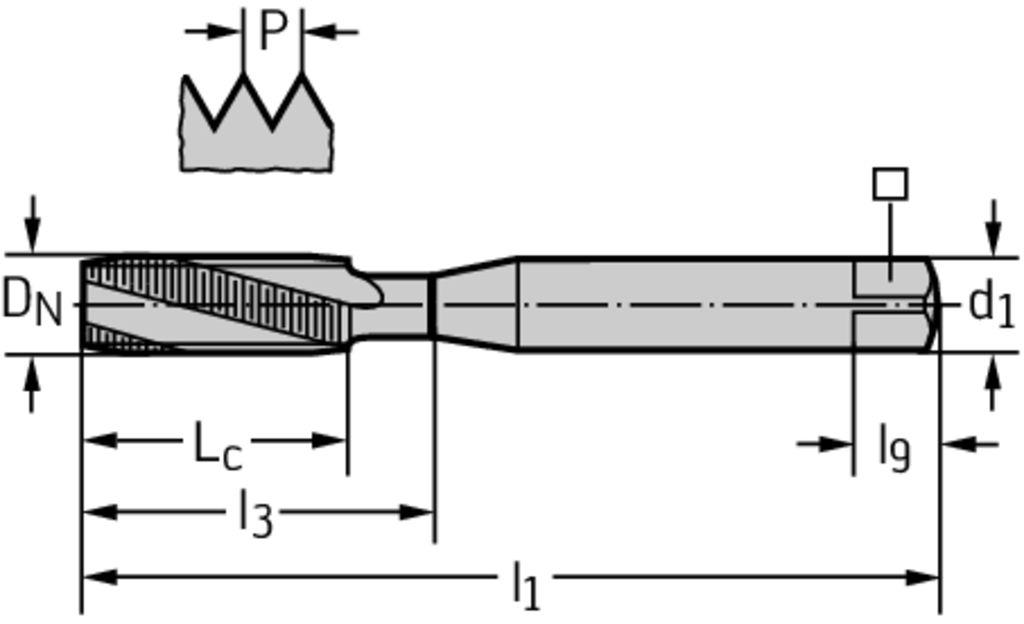

PRODUCT ATTRIBUTES

Tool designation (Designation) 21410-M5X0.5

Thread size (D N) MF 5x0.5

Thread pitch (P) 0,5 mm

Functional length (l 1) 70 mm

Cutting edge length (L c) 8 mm

Useable length (l 3) 25 mm

Connection diameter (d 1) 6 mm

clamping width (⃞) 4,9 mm

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur N • ≤1,5xD • MF/6H • DIN 371 • right hand flute 15° • Suitable for blind hole • MF 5x0.5 • P=0,5mm

Article number (J21):

21410-M5X0.5

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

5 mm

Thread designation outside (A25):

MF 5x0.5

Thread pitch (A3):

0,5 mm

Thread tolerance class (A5):

Gate diameter (A6):

4,48 mm

Neck diameter (A9):

3,8 mm

Thread cutting part length (B1):

8 mm

Usable length (B2):

25 mm

Overall length (B3):

72,26 mm

Tap chamfer length (B4):

1,25 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

15 °

Weight of item (D7):

0,013 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 371

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:
