HSS-E machine taps P2056935-M20

€

131.25

EX VAT

€

161.44

INC VAT

Walter Prototyp

HSS-E machine taps P2056935-M20

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

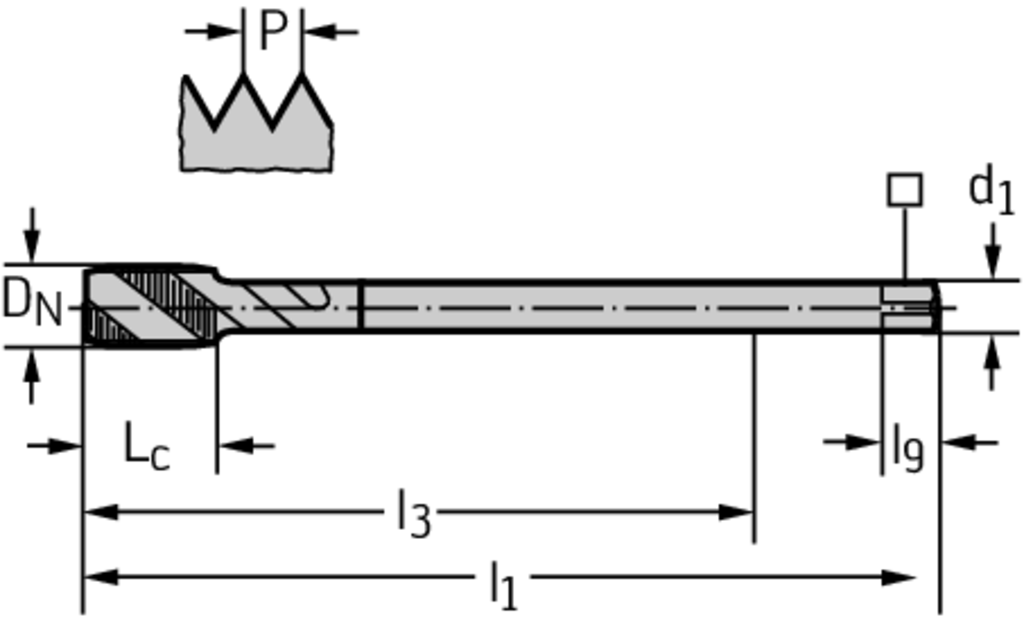

PRODUCT ATTRIBUTES

Tool designation (Designation) P2056935-M20

Thread size (D N) M 20

thread pitch (P) 2,5 mm

Functional length (l 1) 280 mm

Cutting edge length (L c) 25 mm

Useable length (l 3) 235 mm

Connection diameter (d 1) 16 mm

clamping width (⃞) 12 mm

Driving square length (l 9) 15 mm

Number of grooves (N) 4

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine taps • Paradur Xpert P • ≤3xD • M/6H • ~DIN 376 XL • right hand flute 45° • Suitable for blind hole • M 20 • P=2,5mm

Article number (J21):

P2056935-M20

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

20 mm

Thread designation outside (A25):

M 20

Thread pitch (A3):

2,5 mm

Thread tolerance class (A5):

Gate diameter (A6):

17,38 mm

Neck diameter (A9):

15,7 mm

Thread cutting part length (B1):

25 mm

Overall length (B3):

280 mm

Tap chamfer length (B4):

7 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0160

Connection diameter machine side (C3):

16 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

45 °

Weight of item (D7):

0,435 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

~DIN 376 XL

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:
