HSS-E machine thread formers JD2061105-M5

HSS-E machine thread formers JD2061105-M5

€

48.50

EX VAT

€

59.66

INC VAT

Walter Prototyp

HSS-E machine thread formers JD2061105-M5

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

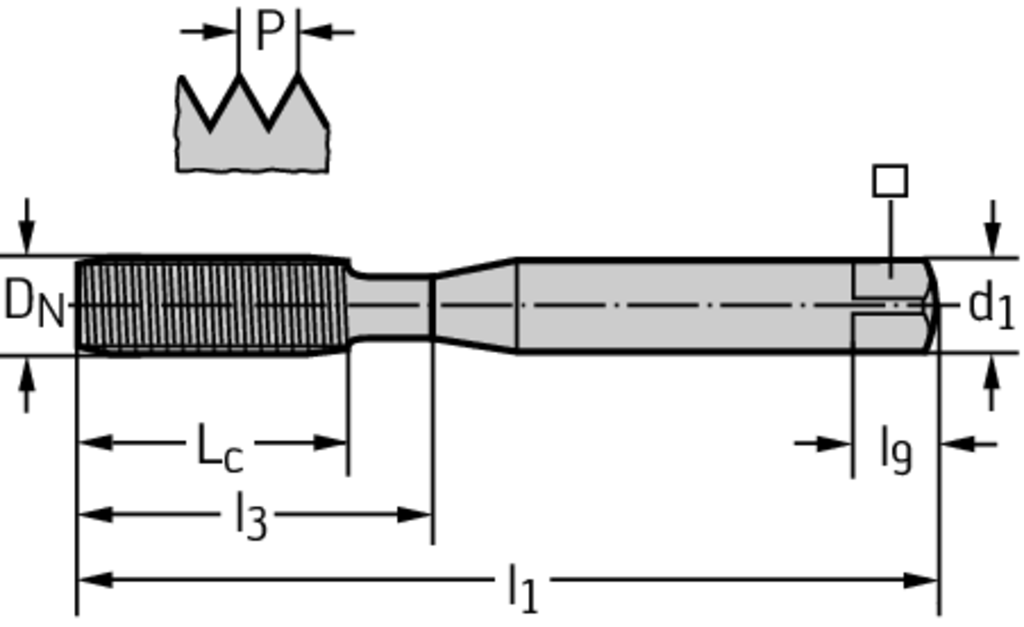

Tool designation (Designation) JD2061105-M5

Thread size (D N) M 5

thread pitch (P) 0,8 mm

Functional length (l 1) 60 mm

Cutting edge length (L c) 13 mm

Useable length (l 3) 25 mm

Connection diameter (d 1) 5,5 mm

clamping width (⃞) 4,5 mm

Driving square length (l 9) 7 mm

Number of grooves (N) 5

Insert Shape

DESCRIPTION & FEATURES

HSS-E machine thread formers • Protodyn Plus • ≤xD • M/6HX • JIS° • Suitable for blind hole • Suitable for through hole • TIN • M 5 • P=0,8mm

Article number (J21):

JD2061105-M5

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

5 mm

Thread designation outside (A25):

M 5

Thread pitch (A3):

0,8 mm

Thread tolerance class (A5):

6HX

Gate diameter (A6):

4,68 mm

Neck diameter (A9):

3,98 mm

Thread cutting part length (B1):

13 mm

Usable length (B2):

25 mm

Overall length (B3):

62,36 mm

Tap chamfer length (B4):

2,9 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0055

Connection diameter machine side (C3):

5,5 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

21 mm

Flute count (D1):

Weight of item (D7):

0,011 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TIN

Body material code (H4):

Coating (H5):

TIN

Standard (J1):

JIS

Data chip provision (J7):

Thread Type:

HSS-E machine thread formers JD2061105-M5
