HSS-E PM machine taps TC120-M20-L0-WW60AG

HSS-E PM machine taps TC120-M20-L0-WW60AG

€

216.00

EX VAT

€

265.68

INC VAT

Walter Prototyp

HSS-E PM machine taps TC120-M20-L0-WW60AG

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

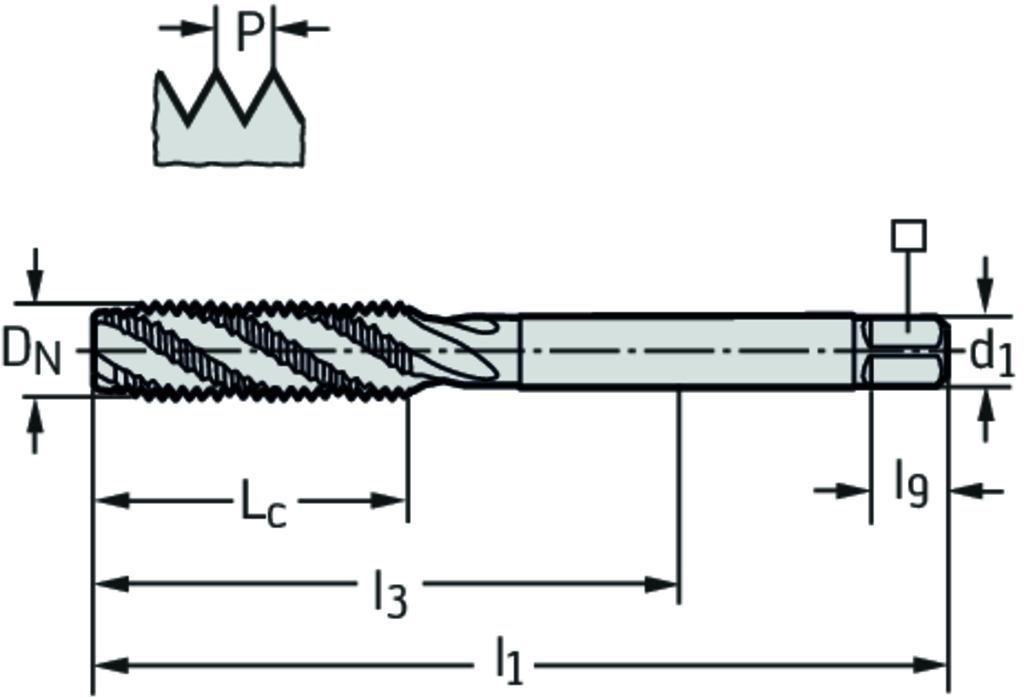

PRODUCT ATTRIBUTES

Tool designation (Designation) TC120-M20-L0-WW60AG

Thread size (D N) M 20

thread pitch (P) 2,5 mm

Functional length (l 1) 140 mm

Cutting edge length (L c) 65 mm

Useable length (l 3) 95 mm

Connection diameter (d 1) 16 mm

clamping width (⃞) 12 mm

Driving square length (l 9) 15 mm

Number of grooves (N) 4

Insert Shape TC

DESCRIPTION & FEATURES

HSS-E PM machine taps TC120 • Supreme • ≤3xD • M/6HX • DIN 376 • right hand flute 45° • Suitable for blind hole • WW60AG • M 20 • P=2,5mm

Article number (J21):

TC120-M20-L0-WW60AG

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

20 mm

Thread designation outside (A25):

M 20

Thread pitch (A3):

2,5 mm

Thread tolerance class (A5):

6HX

Gate diameter (A6):

17,38 mm

Neck diameter (A9):

15,7 mm

Thread cutting part length (B1):

65 mm

Overall length (B3):

140 mm

Tap chamfer length (B4):

7 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0160

Connection diameter machine side (C3):

16 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

45 °

Weight of item (D7):

0,195 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WW60AG

Body material code (H4):

Coating (H5):

TiN/vaporisiert

Standard (J1):

DIN 376

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

HSS-E PM machine taps TC120-M20-L0-WW60AG

HSS-E PM machine taps TC120-M20-L0-WW60AG has been added to your cart.
