HSS-E PM machine taps 7021345-M10

HSS-E PM machine taps 7021345-M10

HSS-E PM machine taps 7021345-M10

HSS-E PM machine taps 7021345-M10

HSS-E PM machine taps 7021345-M10

€

85.80

EX VAT

€

105.53

INC VAT

Walter Prototyp

HSS-E PM machine taps 7021345-M10

P

H

M

S

K

N

O

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

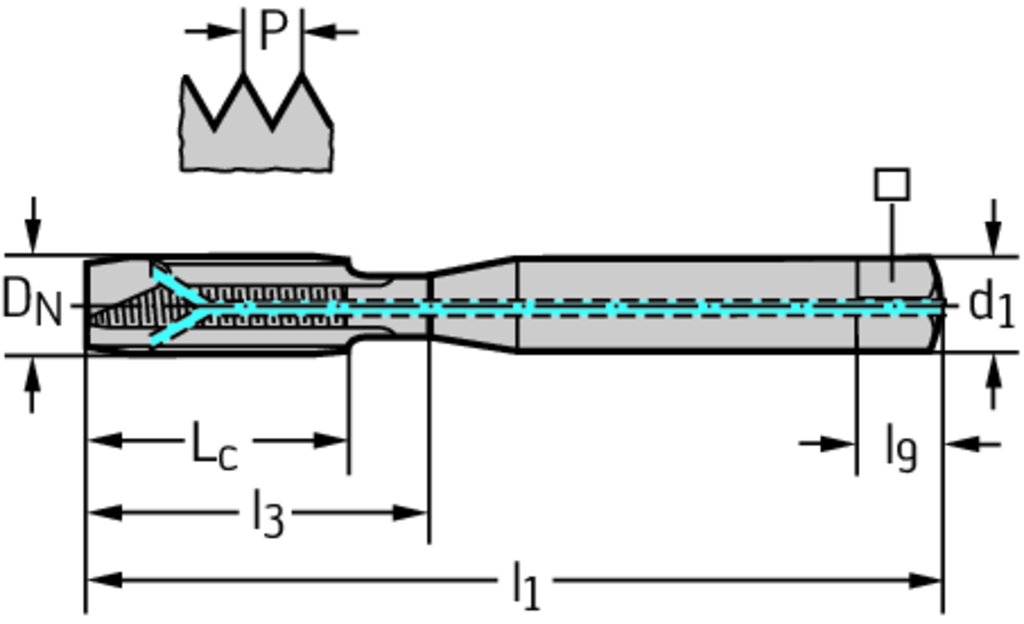

Tool designation (Designation) 7021345-M10

Thread size (D N) M 10

thread pitch (P) 1,5 mm

Overall length (l 1) 100 mm

Cutting edge length (L c) 20 mm

Useable length (l 3) 39 mm

Shank diameter (d 1) 10 mm

clamping width (⃞) 8 mm

Driving square length (l 9) 11 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E PM machine taps • Prototex Megasprint • ≤3xD • M/6H • DIN 371 • TIN • Suitable for through hole • M 10 • P=1,5mm

Article number (J21):

7021345-M10

Company code (J3):

W

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

2

Thread form type (A1):

M

Thread diameter (A21):

10 mm

Thread designation outside (A25):

M 10

Thread pitch (A3):

1,5 mm

Thread tolerance class (A5):

6H

Gate diameter (A6):

8,35 mm

Thread cutting part length (B1):

20 mm

Usable length (B2):

39 mm

Overall length (B3):

110 mm

Tap chamfer length (B4):

3,279 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

21

Connection code unit base machine side (C14):

1

Connection code style machine side (C15):

5

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

h9

Shank length (C4):

30 mm

Flute count (D1):

3

Flute helix angle (D3):

0 °

Weight of item (D7):

0,054 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

1

Plug style (G3):

B

Coolant entry style code (H21):

1

Coolant exit style code (H22):

2

Grade manufacturer's designation (H3):

TIN

Body material code (H4):

S

Coating (H5):

TIN

Standard (J1):

DIN 371

Data chip provision (J7):

0

Hole Type:

Through hole

Thread Type:

M
