HSS-E PM machine taps 23466-UNF7/16

€

72.53

EX VAT

€

89.21

INC VAT

Walter Prototyp

HSS-E PM machine taps 23466-UNF7/16

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

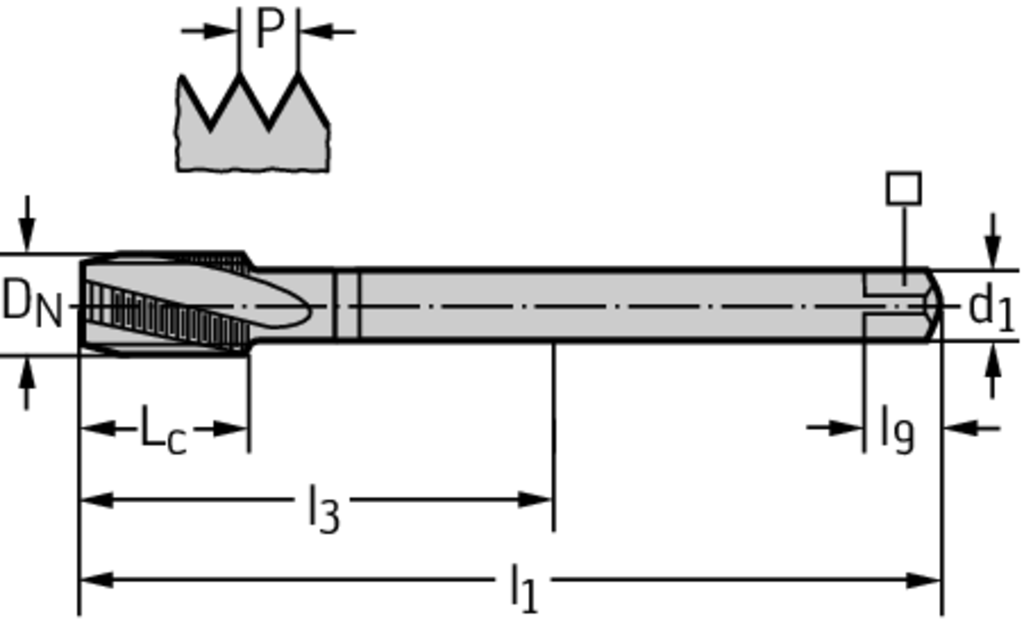

Tool designation (Designation) 23466-UNF7/16

Thread size (D N -P) UNF 7/16-20

Thread size (D N) UNF 7/16-20

Functional length (l 1) 3,937 inch

Cutting edge length (L c) 0,787 inch

Useable length (l 3) 2,992 inch

Connection diameter (d 1) 0,315 inch

clamping width (⃞) 0,244 inch

Driving square length (l 9) 0,354 inch

Number of grooves (N) 4

Insert Shape

DESCRIPTION & FEATURES

HSS-E PM machine taps • Paradur Ti • ≤2xD • UNF/2B • DIN 2184-1 • right hand flute 15° • Suitable for blind hole • UNF 7/16-20 • P=20

Article number (J21):

23466-UNF7/16

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNF

Thread diameter nominal inch (A22):

0,4375 inch

Thread diameter nominal fraction (A24):

7/16 inch

Thread designation outside (A25):

UNF 7/16-20

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

9,78 mm

Neck diameter (A9):

7,7 mm

Thread cutting part length (B1):

20 mm

Overall length (B3):

100 mm

Tap chamfer length (B4):

3,56 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

15 °

Weight of item (D7):

0,047 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

UNF

HSS-E PM machine taps 23466-UNF7/16

HSS-E PM machine taps 23466-UNF7/16 has been added to your cart.
