HSS-E PM machine taps 224101-UNJC6

€

63.38

EX VAT

€

77.96

INC VAT

Walter Prototyp

HSS-E PM machine taps 224101-UNJC6

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

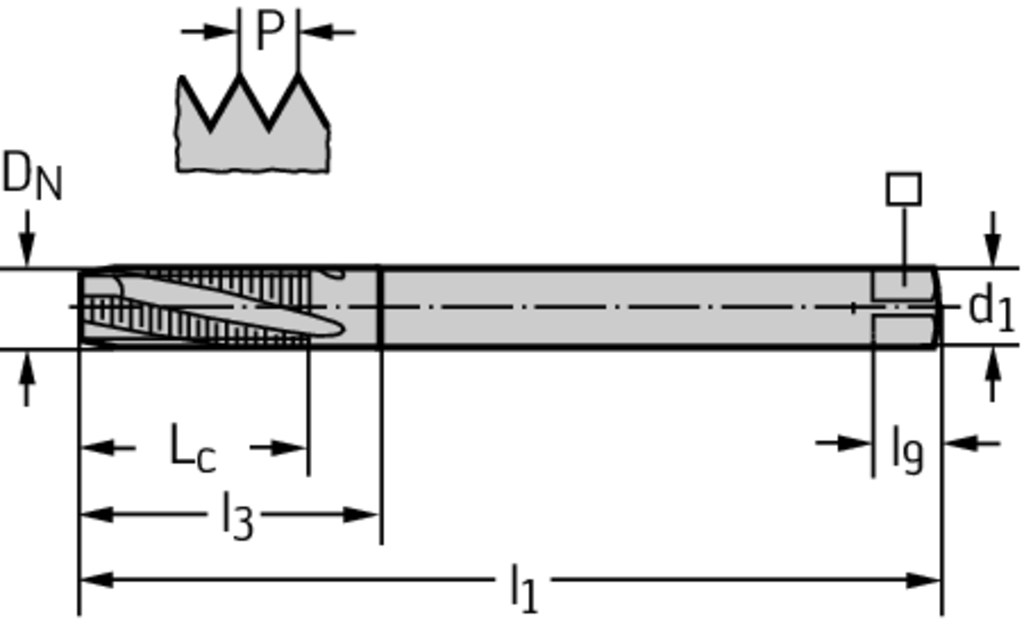

PRODUCT ATTRIBUTES

Tool designation (Designation) 224101-UNJC6

Thread size (D N -P) UNJC #6-32

Thread size (D N) UNJC #6-32

Functional length (l 1) 56 mm

Cutting edge length (L c) 10 mm

Connection diameter (d 1) 4 mm

clamping width (⃞) 3 mm

Driving square length (l 9) 6 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E PM machine taps • Paradur Ni 10 • ≤1,5xD • UNJC/3B • ~DIN 2184-1 • right hand flute 10° • Suitable for blind hole • UNJC #6-32 • P=32

Article number (J21):

224101-UNJC6

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNJC

Thread diameter nominal inch (A22):

0,138 inch

Thread diameter size (A23):

Thread designation outside (A25):

UNJC #6-32

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

2,67 mm

Thread cutting part length (B1):

10 mm

Usable length (B2):

10 mm

Overall length (B3):

57,35 mm

Tap chamfer length (B4):

1,98 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0040

Connection diameter machine side (C3):

4 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

21 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

10 °

Weight of item (D7):

0,007 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

~DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

UNJC
