HSS-E PM machine taps 224604-UNC1/2

€

87.00

EX VAT

€

107.01

INC VAT

Walter Prototyp

HSS-E PM machine taps 224604-UNC1/2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

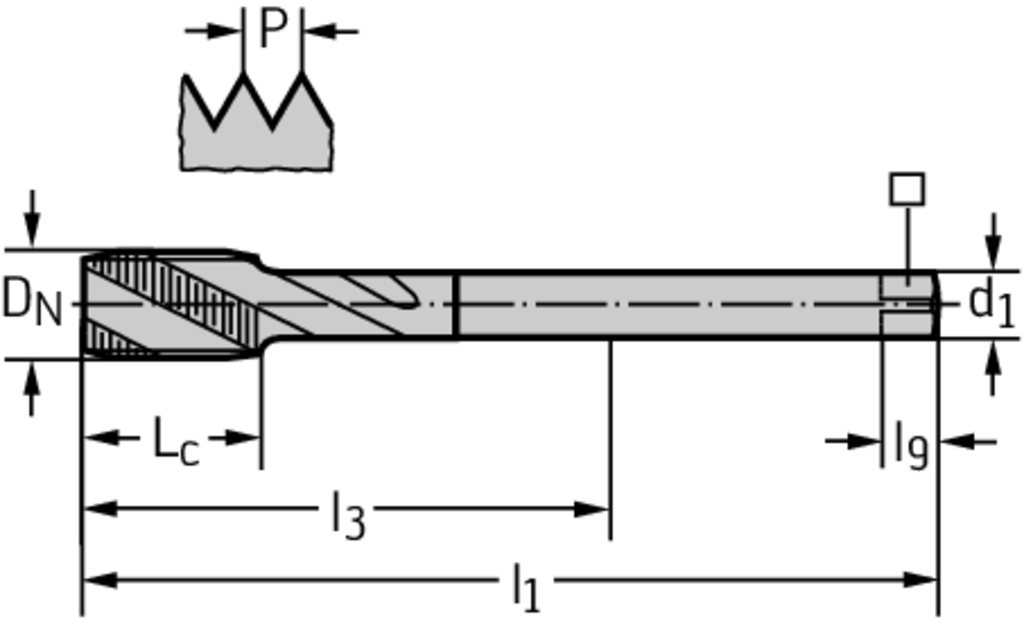

PRODUCT ATTRIBUTES

Tool designation (Designation) 224604-UNC1/2

Thread size (D N -P) UNC 1/2-13

Thread size (D N) UNC 1/2-13

Functional length (l 1) 110 mm

Cutting edge length (L c) 23 mm

Useable length (l 3) 83 mm

Connection diameter (d 1) 9 mm

clamping width (⃞) 7 mm

Driving square length (l 9) 10 mm

Number of grooves (N) 4

Insert Shape

DESCRIPTION & FEATURES

HSS-E PM machine taps • Paradur Ni • ≤1,5xD • UNC/3B • DIN 2184-1 • right hand flute 25° • Suitable for blind hole • UNC 1/2-13 • P=13

Article number (J21):

224604-UNC1/2

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNC

Thread diameter nominal inch (A22):

0,5 inch

Thread diameter nominal fraction (A24):

1/2 inch

Thread designation outside (A25):

UNC 1/2-13

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

10,65 mm

Neck diameter (A9):

8,7 mm

Thread cutting part length (B1):

23 mm

Overall length (B3):

110 mm

Tap chamfer length (B4):

5,48 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0090

Connection diameter machine side (C3):

9 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

30 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

25 °

Weight of item (D7):

0,06 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

UNC
