HSS-E PM machine taps 2321706-UNF5/16

€

89.25

EX VAT

€

109.78

INC VAT

Walter Prototyp

HSS-E PM machine taps 2321706-UNF5/16

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

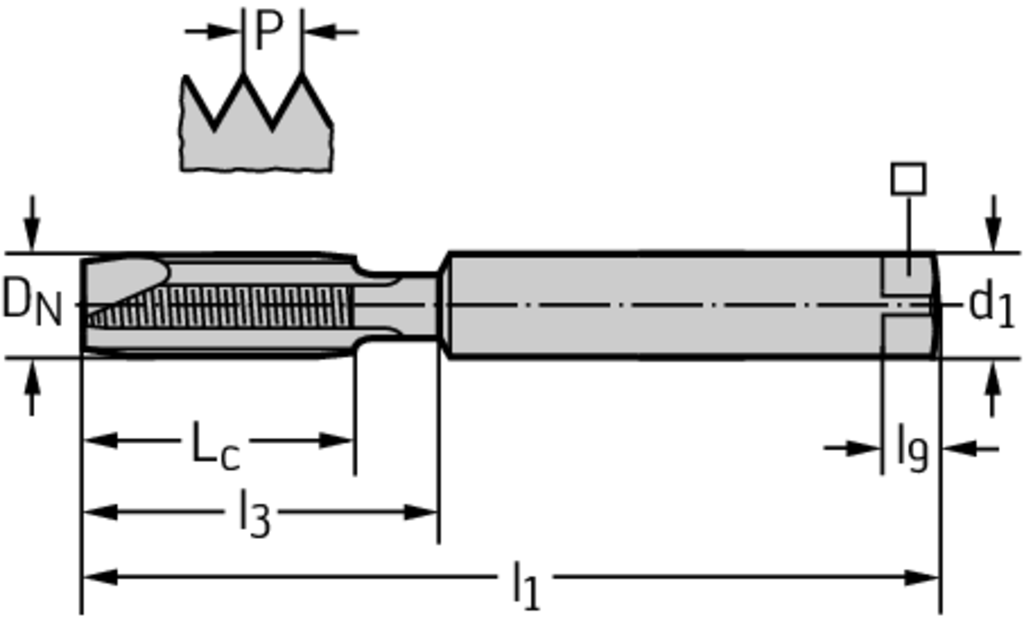

Tool designation (Designation) 2321706-UNF5/16

Thread size (D N -P) UNF 5/16-24

Thread size (D N) UNF 5/16-24

Overall length (l 1) 90 mm

Cutting edge length (L c) 18 mm

Useable length (l 3) 29,5 mm

Shank diameter (d 1) 8 mm

clamping width (⃞) 6,2 mm

Driving square length (l 9) 9 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E PM machine taps • Prototex TiNi • ≤2xD • UNF/2B • ~DIN 2184-1 • TICN • Suitable for through hole • UNF 5/16-24 • P=24

Article number (J21):

2321706-UNF5/16

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNF

Thread diameter nominal inch (A22):

0,3125 inch

Thread diameter nominal fraction (A24):

5/16 inch

Thread designation outside (A25):

UNF 5/16-24

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

6,83 mm

Neck diameter (A9):

6,3 mm

Thread cutting part length (B1):

18 mm

Usable length (B2):

29,5 mm

Overall length (B3):

91,57 mm

Tap chamfer length (B4):

4,76 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

0 °

Weight of item (D7):

0,036 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TICN

Body material code (H4):

Coating (H5):

TiCN

Standard (J1):

~DIN 2184-1

Data chip provision (J7):

Hole Type:

Through hole

Thread Type:

UNF

HSS-E PM machine taps 2321706-UNF5/16

HSS-E PM machine taps 2321706-UNF5/16 has been added to your cart.
