HSS-E PM machine taps 234101-UNJF8

€

70.05

EX VAT

€

86.16

INC VAT

Walter Prototyp

HSS-E PM machine taps 234101-UNJF8

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

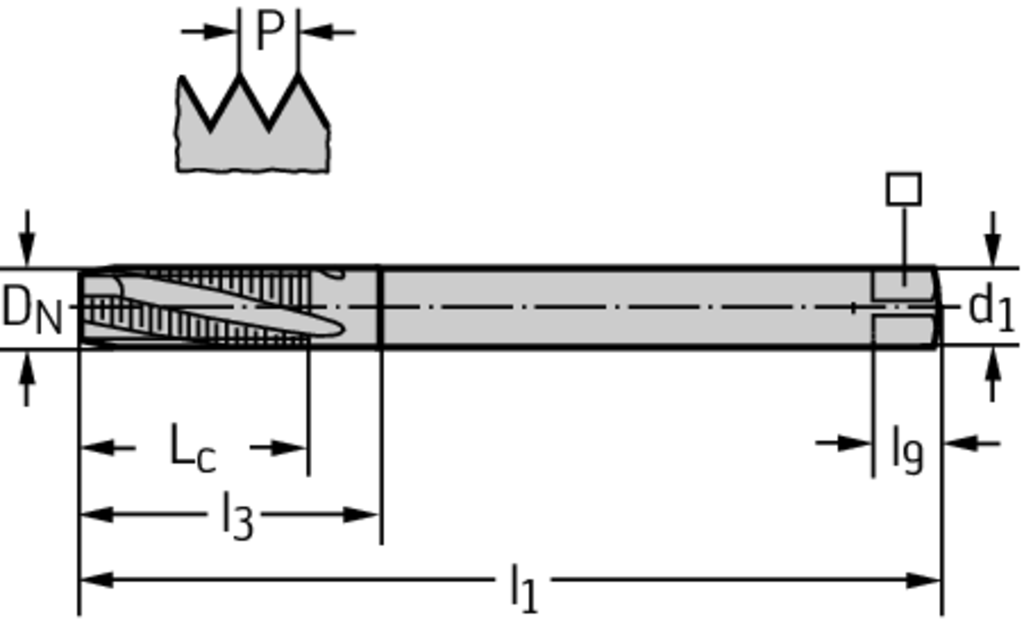

PRODUCT ATTRIBUTES

Tool designation (Designation) 234101-UNJF8

Thread size (D N -P) UNJF #8-36

Thread size (D N) UNJF #8-36

Functional length (l 1) 63 mm

Cutting edge length (L c) 11 mm

Connection diameter (d 1) 4,5 mm

clamping width (⃞) 3,4 mm

Driving square length (l 9) 6 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E PM machine taps • Paradur Ni 10 • ≤1,5xD • UNJF/3B • ~DIN 2184-1 • right hand flute 10° • Suitable for blind hole • UNJF #8-36 • P=36

Article number (J21):

234101-UNJF8

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

UNJF

Thread diameter nominal inch (A22):

0,164 inch

Thread diameter size (A23):

Thread designation outside (A25):

UNJF #8-36

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

3,43 mm

Thread cutting part length (B1):

11 mm

Usable length (B2):

11 mm

Overall length (B3):

64,73 mm

Tap chamfer length (B4):

1,76 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0045

Connection diameter machine side (C3):

4,5 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

21 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

10 °

Weight of item (D7):

0,009 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

~DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

UNJF
