HSS-E PM machine taps 234569-EGUNF3/8

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

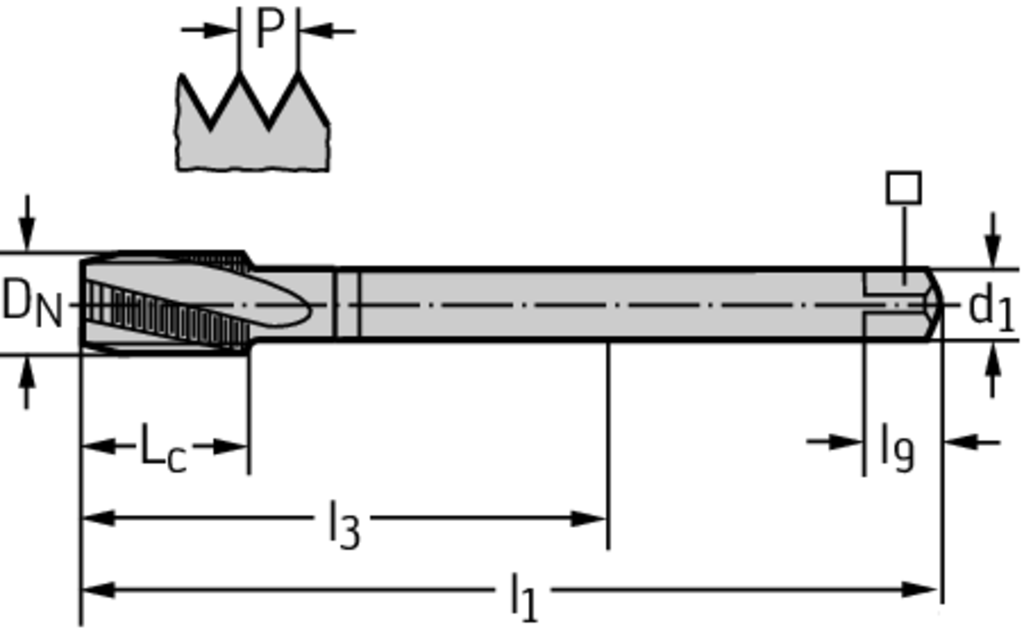

PRODUCT ATTRIBUTES

Tool designation (Designation) 234569-EGUNF3/8

Thread size (D N -P) EGUNF 3/8-24

Thread size (D N) EGUNF 3/8-24

Functional length (l 1) 100 mm

Cutting edge length (L c) 20 mm

Useable length (l 3) 76 mm

Connection diameter (d 1) 8 mm

clamping width (⃞) 6,2 mm

Driving square length (l 9) 9 mm

Number of grooves (N) 4

DESCRIPTION & FEATURES

HSS-E PM machine taps • Paradur Ti • ≤2xD • EGUNF/3B • DIN 2184-1 • right hand flute 15° • Suitable for blind hole • EGUNF 3/8-24 • P=24

Article number (J21):

234569-EGUNF3/8

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

EGUNF

Thread diameter nominal inch (A22):

0,4291 inch

Thread diameter nominal fraction (A24):

3/8 inch

Thread designation outside (A25):

EGUNF 3/8-24

Threads per inch (A4):

Thread tolerance class (A5):

Gate diameter (A6):

9,74 mm

Neck diameter (A9):

7,7 mm

Thread cutting part length (B1):

20 mm

Overall length (B3):

100 mm

Tap chamfer length (B4):

2,97 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

15 °

Weight of item (D7):

0,046 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

DIN 2184-1

Data chip provision (J7):

Hole Type:

Blind hole

Thread Type:

EGUNF

HSS-E PM machine taps 234569-EGUNF3/8

HSS-E PM machine taps 234569-EGUNF3/8 has been added to your cart.
