HSS-E-PM machine thread formers TC430-M10-C6-WW60EL

HSS-E-PM machine thread formers TC430-M10-C6-WW60EL

€

100.50

EX VAT

€

123.62

INC VAT

Walter Prototyp

HSS-E-PM machine thread formers TC430-M10-C6-WW60EL

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

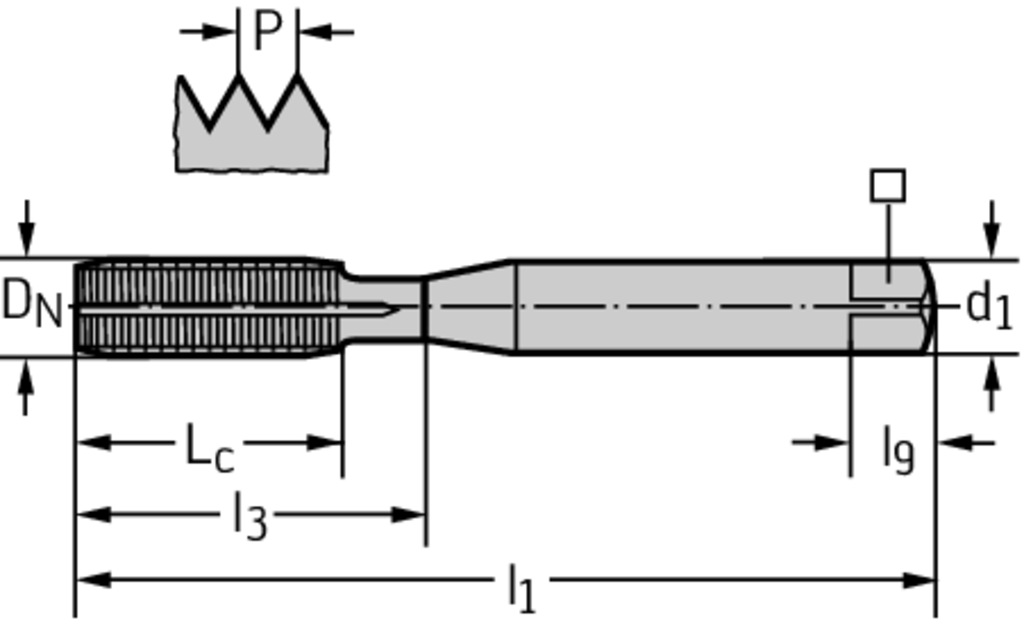

PRODUCT ATTRIBUTES

Tool designation (Designation) TC430-M10-C6-WW60EL

Thread size (D N) M 10

thread pitch (P) 1,5 mm

Functional length (l 1) 100 mm

Cutting edge length (L c) 15 mm

Useable length (l 3) 39 mm

Connection diameter (d 1) 10 mm

clamping width (⃞) 8 mm

Driving square length (l 9) 11 mm

Number of grooves (N) 7

Insert Shape TC

DESCRIPTION & FEATURES

HSS-E-PM machine thread formers TC430 • Supreme • ≤3,5xD • M/6HX • DIN 2174° • Suitable for blind hole • Suitable for through hole • WW60EL • M 10 • P=1,5mm

Article number (J21):

TC430-M10-C6-WW60EL

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

10 mm

Thread designation outside (A25):

M 10

Thread pitch (A3):

1,5 mm

Thread tolerance class (A5):

6HX

Gate diameter (A6):

9,38 mm

Neck diameter (A9):

8 mm

Thread cutting part length (B1):

15 mm

Usable length (B2):

39 mm

Overall length (B3):

100 mm

Tap chamfer length (B4):

4,5 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

30 mm

Flute count (D1):

Weight of item (D7):

0,057 kg

Cutting direction (F1):

Right

Tap type identifier (G21):

Plug style (G3):

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WW60EL

Body material code (H4):

Coating (H5):

AlCrN

Standard (J1):

DIN 2174

Data chip provision (J7):

HSS-E-PM machine thread formers TC430-M10-C6-WW60EL
